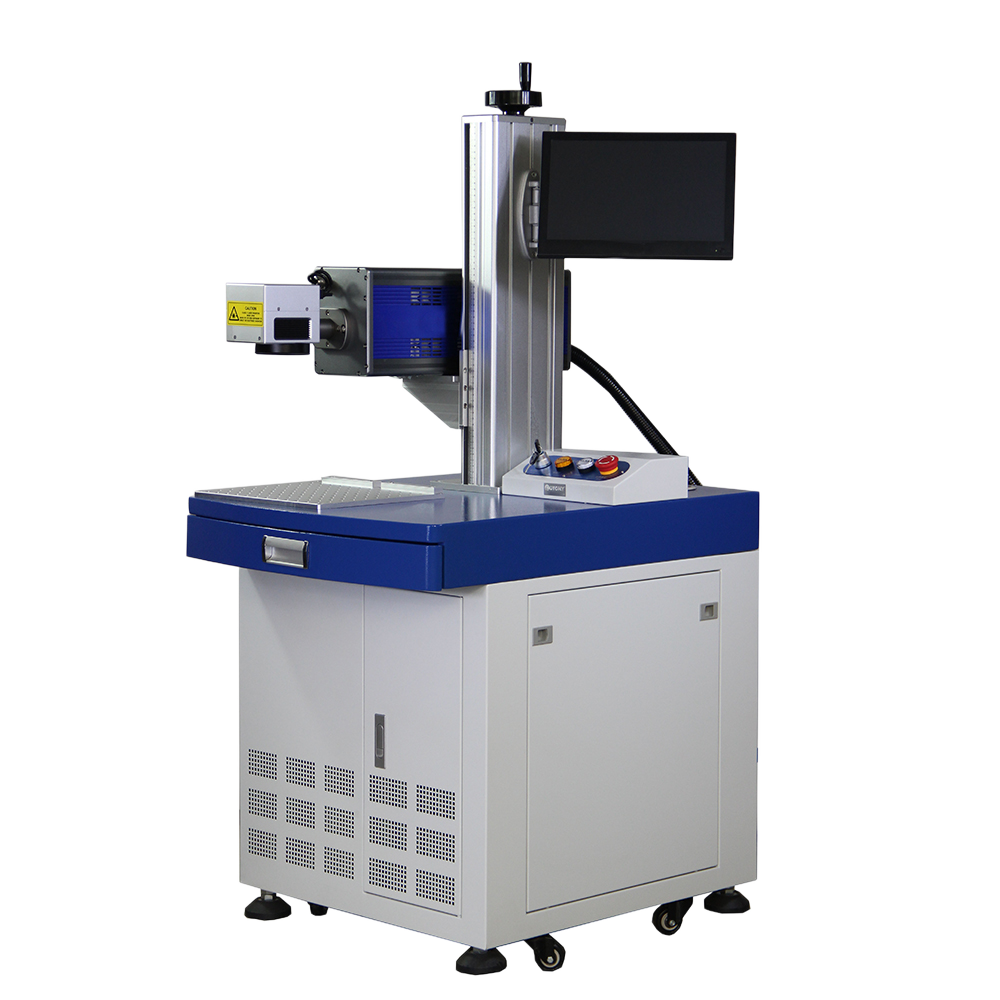

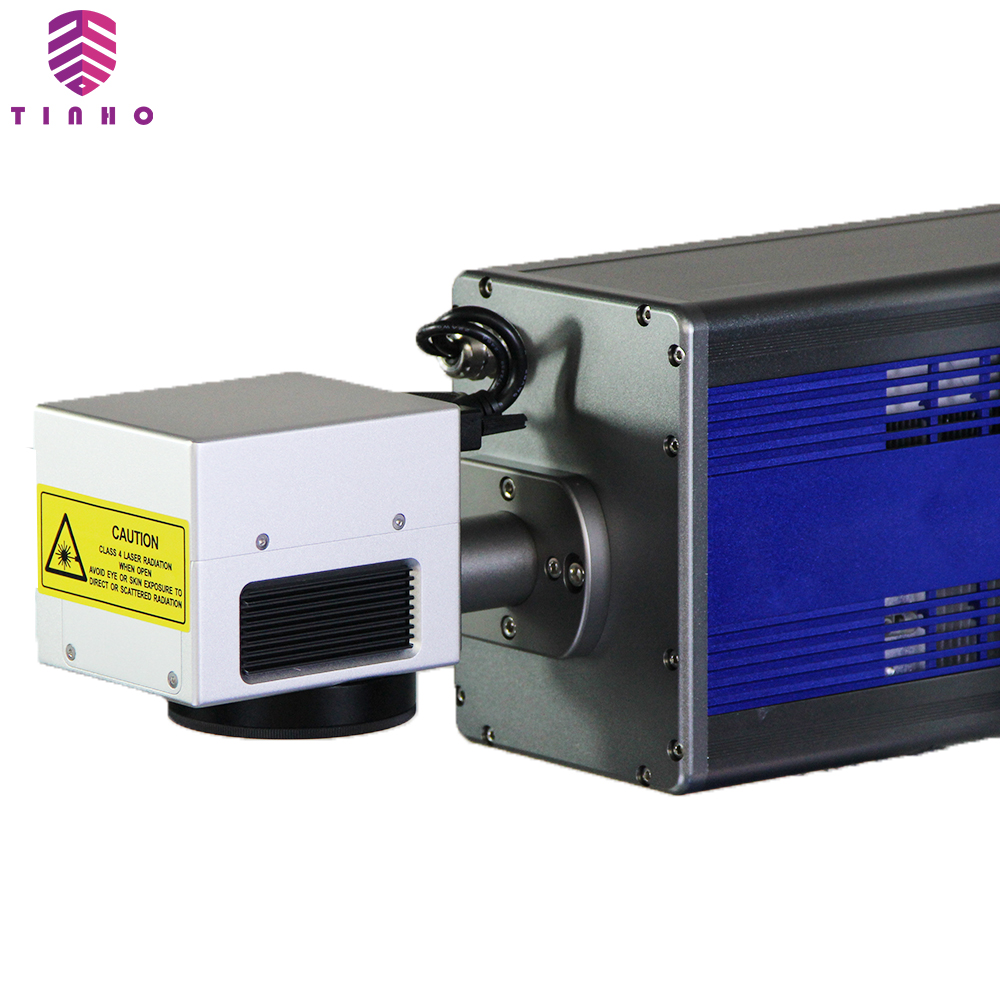

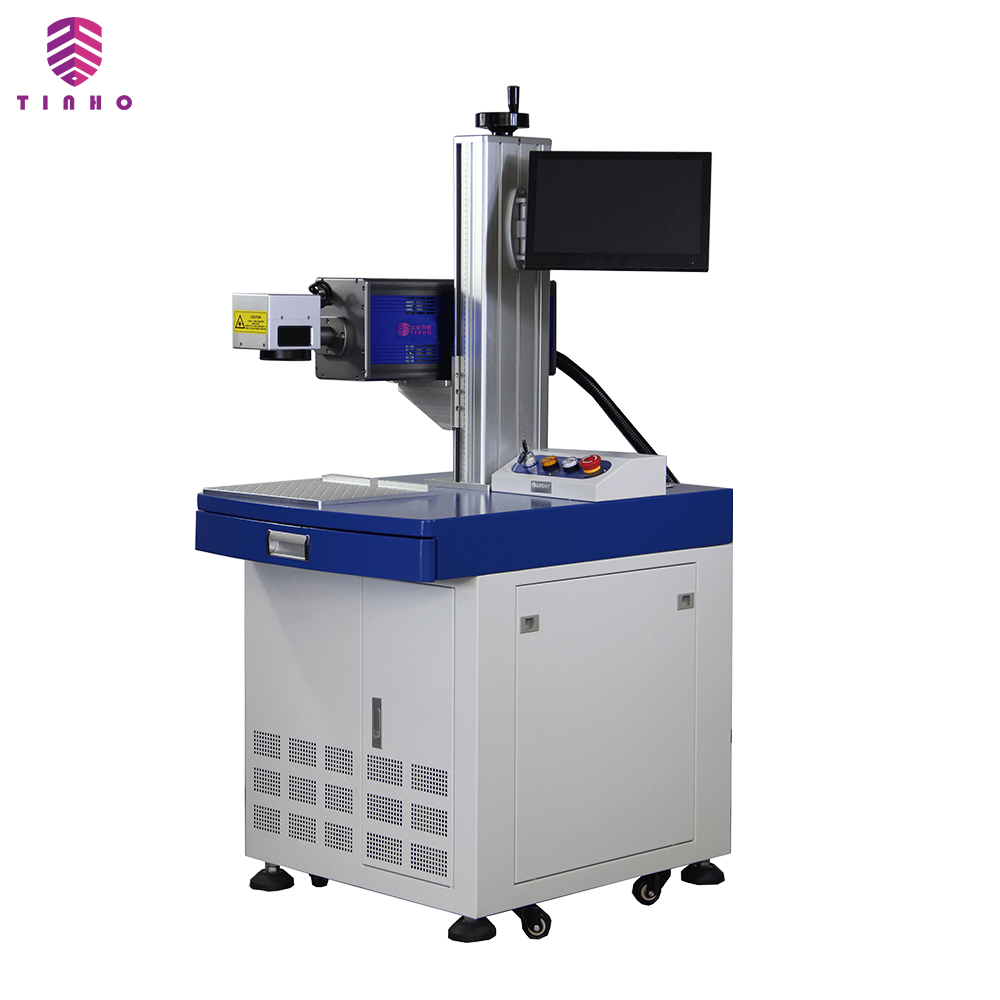

THC30Plus CO2 Static Laser
Ideal Industrial High-Speed Online Fiber Laser Marking Solution
The THC30 Plus CO2 Static laser marking machine has good performance of high integration, compact design, and intelligent operation. It seamlessly adapts to various production line speeds and a wide range of materials making it ideal marking and coding solution for industrial application.
Highlights of THC30Plus CO2 Stationary laser
System integration capability
THC30 Plus CO2 Static laser marking machine can seamless integration with management systems such as EPR, WMS, and MES.
Flexibility & customization
Offers over 50 standard beam delivery options and a 360° rotatable scanning head, with support for customization to meet specific requirements.
High performance & low cost
Delivers superior beam spot quality and high laser power, producing clear, durable markings that resist wear; requires no maintenance or consumables, resulting in low operating costs.
Long lifespan
Features a long-life laser source with a Mean Time Between Failures (MTBF) of up to 20,000 hours.
Format capability
Features a web-based user interface paired with an intuitive HMI for ease of operation; supports a wide range of file formats, including PLT, AI, DXF, BMP, and JPG.
Adaptability to harsh environments
Features an IP54/IP65-rated print head and an IP55-rated controller; capable of operating in ambient temperatures up to 45°C and withstanding harsh conditions involving dust, moisture, and viscous substances.
Product Parameters
|
Laser Type |
Desktop Type CO2 Laser |
|
Output Power |
≥ 30W |
|
Laser Wavelength |
930nm / 1064nm / 1020nm |
|
Cooling System |
Air cooling |
|
Marking Area |
Standard 110 x 110 mm (Customized available) |
|
Galvanometer Deflection |
High precision dual dimensional scanning system |
|
Master Control |
Highly integrated board with 10 inch color touch screen |
|
Operating System |
LINUX based with high speed marking software |
|
Focus Distance |
135mm (Customized available) |
|
Min Line Width |
0.012mm |
|
Repeatability Accurate Positioning |
0.003mm |
|
Marking Line Type |
Dot matrix, Bold, Vector all in one (Both dot matrix and vector) |
|
Typeface |
Chinese, English, Arabic, Russian, Spanish, Faris, Italian etc. |
|
Marking Content |
Number, Logo, Image, Letter, Serial number, System date & time, etc. |
|
File Format |
CNF, PLT, JPG, CRD, BMP |
|
Barcode Type |
CODE39, CODE128, CODE126, QR, Z-CODE |
|
Power Supply |
100-220V / 50-60HZ |
|
Power Consumption |
600W |
|
Gross Weight |
42KG |
|
Environmental Requirement |
External temperature:0℃-45℃ Humidity: ≤95% Non-condensing No shaking |
Features
High Optical Efficiency
Reasonable optical design, supplemented by high-end optics, high photoelectric conversion rate and low laser loss.
Dust-Proof Design
The unique dust-proof design keeps the laser body section clean and prevents crystal damage.
Stable Operation
The optical and electrical separation layout reduces heat generation, enables the laser to operate stably, and reduces signal interference.
Compact Structure
Modular design, small size, easy to split, support fast and convenient replacement after-sales service.

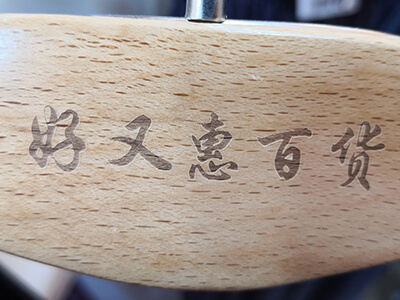

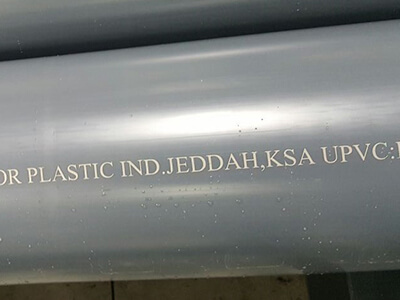

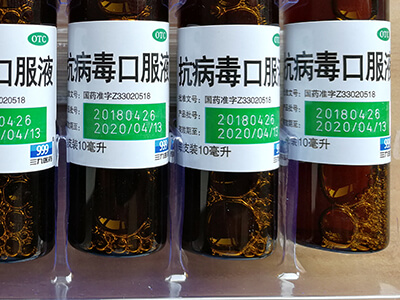

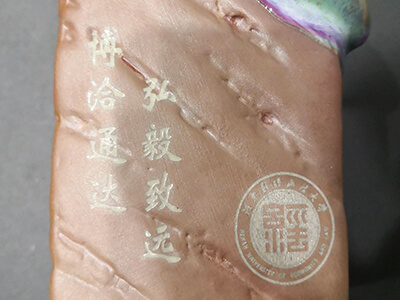

Applications
