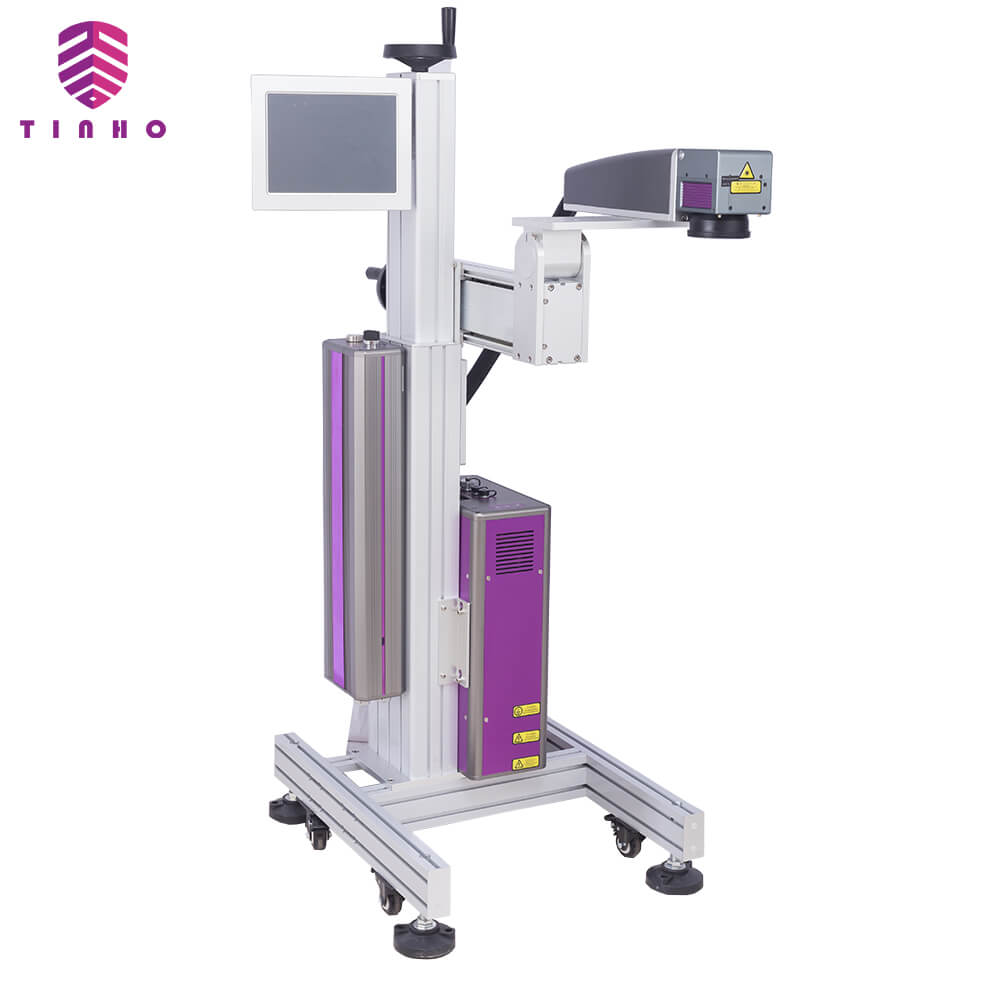

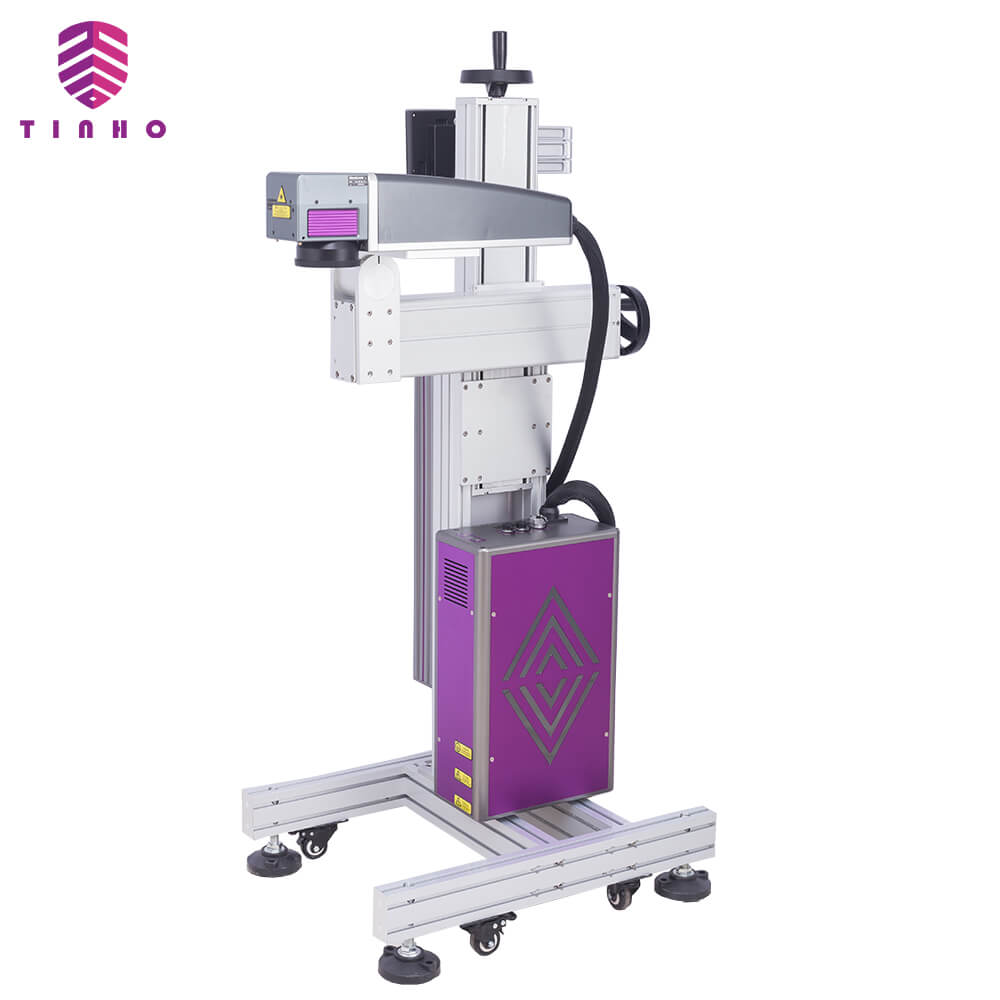

THF30F Fiber Fly Laser Marking Machine

PRODUCT

Overview

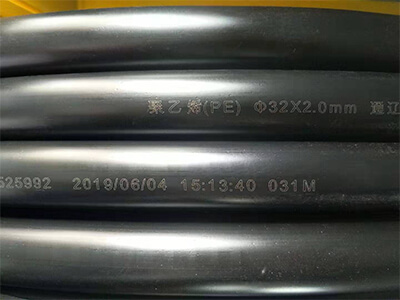

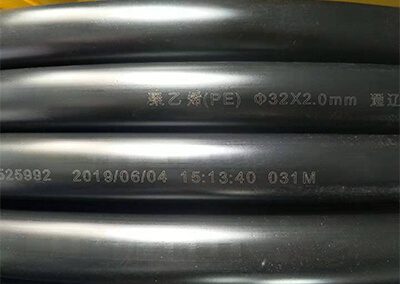

THF30F fiber fly laser machine is the latest fiber flying laser printer widely used in cables and plastic pipes.

– 24 hours continuous operation

– 250mm (10.1’’)smart touch screen

– Industrial-grade controller

– Compatible with industrial interfaces (industry 4.0 ready)

– Easy system integration

– Low operating and maintenance costs

Send Email to Us

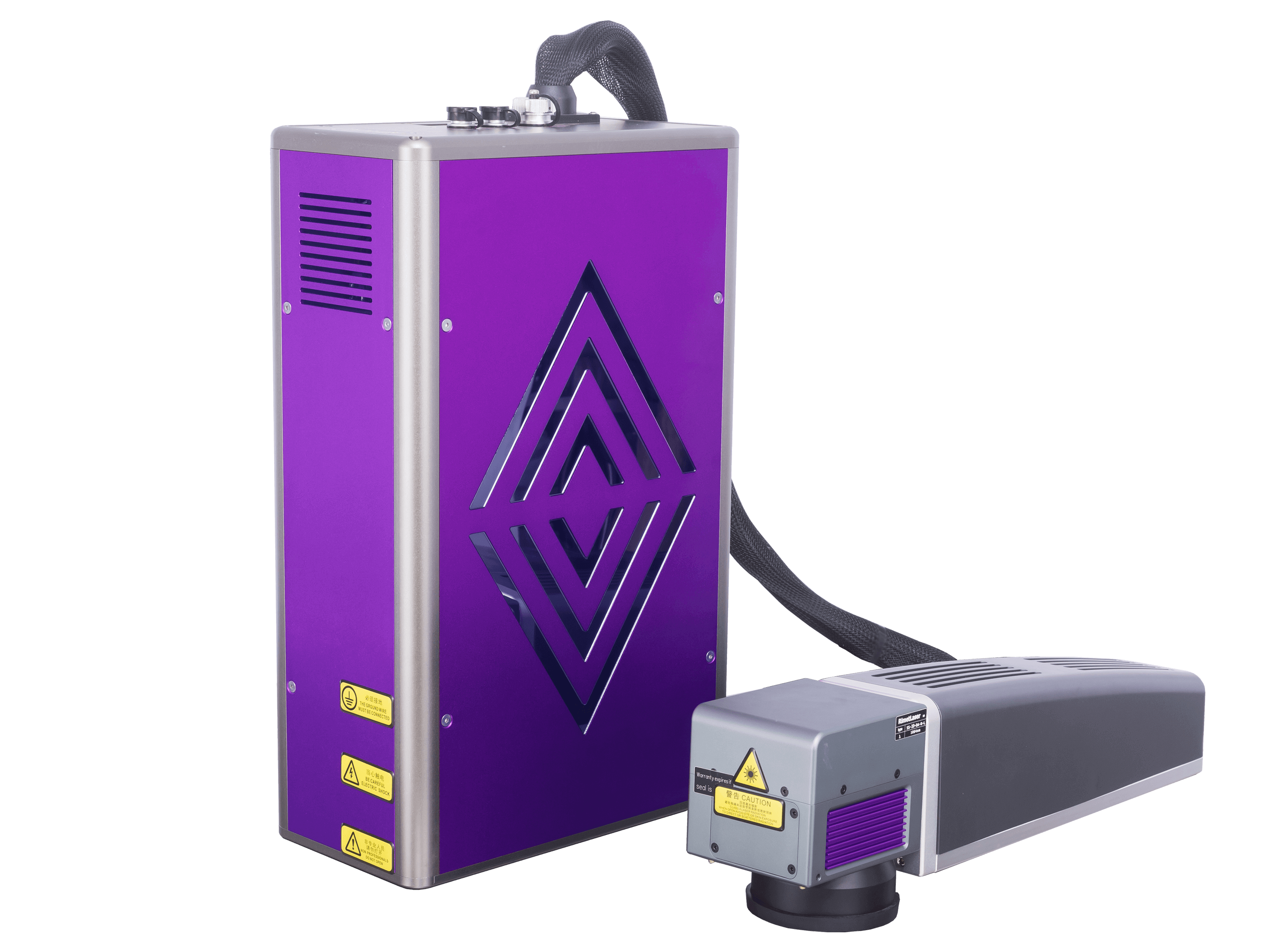

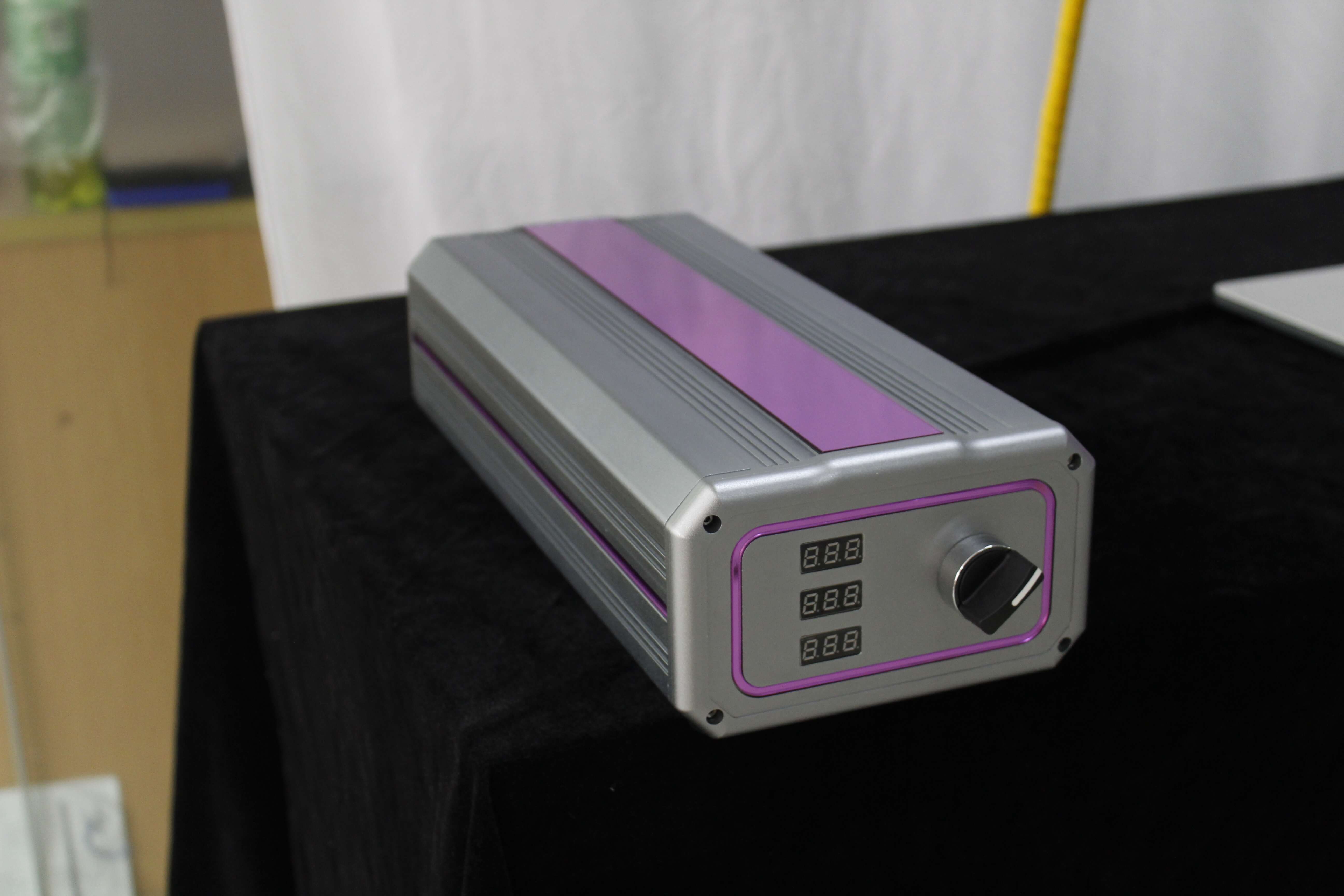

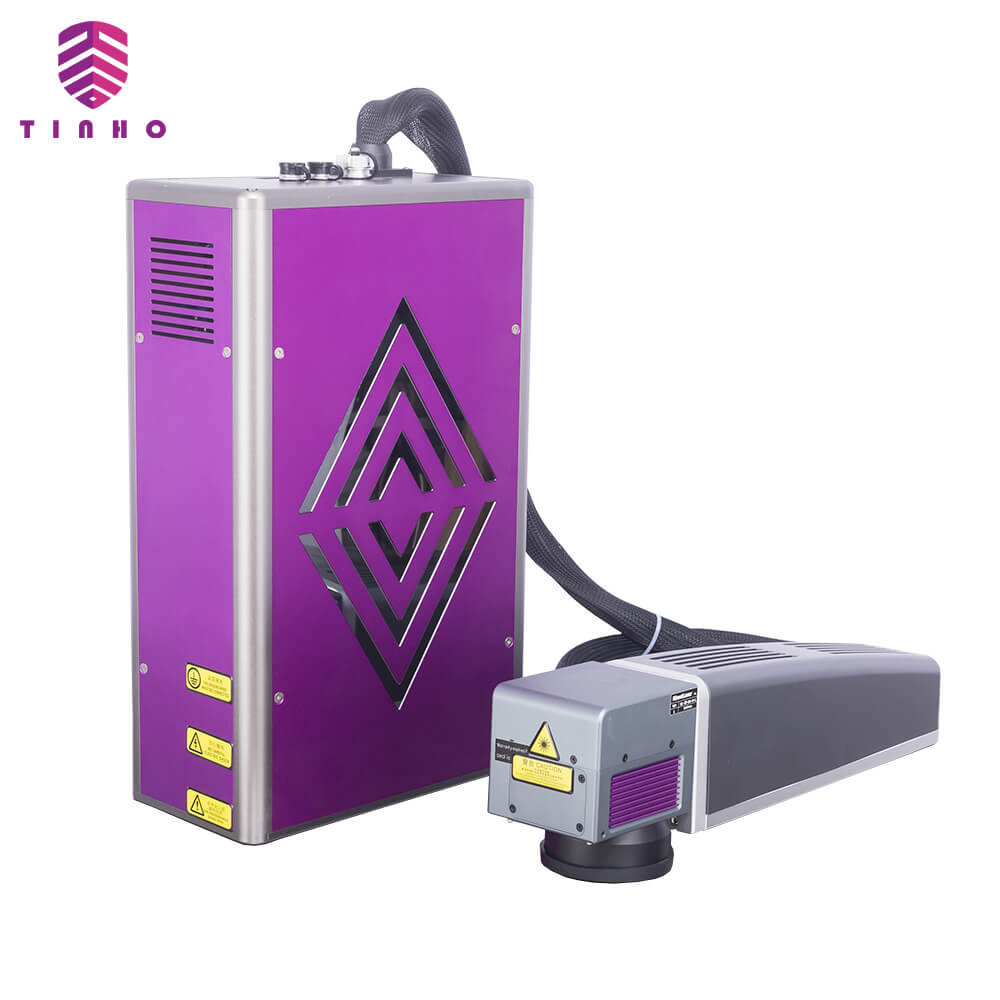

Introduction of THF30F Fiber Laser Machine

The THF30F Fiber laser machine can create clear, excellent, and permanent markings for your specific application. TINHO is committed to providing coding solutions that meet all your marking needs.

Fiber laser printer working principle

The fiber laser printer uses a laser beam to quickly move on the surface of the workpiece to achieve marking of text, patterns, etc.

Benefits of TINHO THF30F fiber laser machine

High-quality & permanent codes

Under high production line speed and product throughput, the THF30F fiber laser marking machine can still maintain clean and clear markings, excellent readability and traceability.

This permanent marking method is of special significance for product anti-counterfeiting and brand protection.

Lower OPEX & chemical-free

Fiber laser marking machines eliminate consumables and external cooling costs, significantly reducing operating expenses.

Low-cost maintenance increases equipment efficiency and reduces losses caused by production line downtime.

Industry 4.0 ready

The TINHO THF30F fiber laser marking machine is designed for Industry 4.0. With comprehensive support for industrial interfaces such as Ethernet/IP, PROFINET, and NGPCL, including CoLOS software, it seamlessly integrates with factory automation and Manufacturing Execution Systems (MES).

Also, its IP55 protection rating and ISO9001/PLe safety standards ensure stable and reliable operation in harsh working conditions.

Frame Material		Complete Alum
Laser Device		Fiber Laser
Power		≥20W/30W/50W
Laser Wavelength		1064nm
Galvanometer Deflection		High Position Dual Dimension Scannning System
Marking Speed		≤9000mm/s
Master Control		High Intergrated Board with 10 Inch Color Touch Screen
Operation System		LINUX
Cooling		Air Cooling(6pcs cooling fans)
Focus Distance		180mm
Mini Line Width		0.012mm
Repeatability Accurate Positiong		0.003mm
Marking Line Type		Dot Matrix, Bold, Vector all in one(both dot & matrix and vector)
Marking content		Number, Logo, Image, Letter, System date & Time, etc.
File Format		CNF,PLT, JPG, CRD, BMP
Barcode Type		CODE39,CODE128, CODE126, QR, Z-CODE
Power Supply		100-220V/50-60HZ
Power consumption		600W

Q:What is a fiber laser marking?

A:A fiber laser marking is a technology that uses a laser beam to make permanent marks on the surface of workpieces made of different materials.

Q:How fiber laser marking machine works?

A:A fiber laser printer (also called a fiber laser marking machine) works by using a high-energy laser beam generated from a fiber laser source to etch, engrave, or mark the surface of a material.

Q:How to use fiber laser marking machine?

A:To use a fiber laser marking machine smoothly, we provide simple guidance on initial printing settings and daily maintenance (Learn more). Of course, for more technical questions, you can consult our technical experts with more than 20 years of experience.

Applications of THF30F Fiber Fly Laser Printer

The THF30F fiber fly laser printer, which combines extreme efficiency, good integration, intelligence and reliability, and continuous 24-hour operation, is widely used in food packaging, pharmaceutical, electrical and other industries.

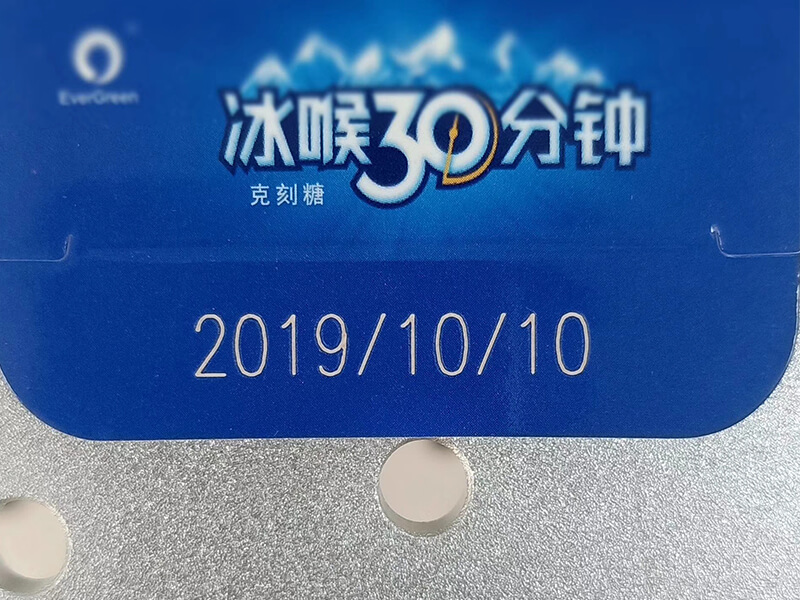

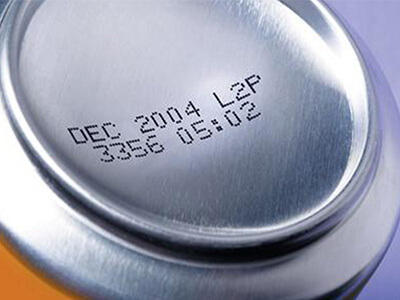

1.Food and beverage packaging

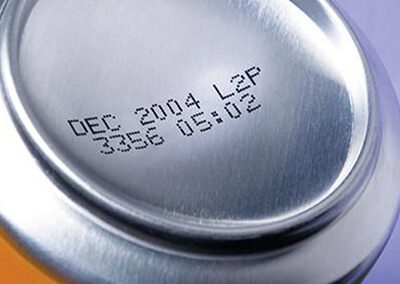

In food and beverage packaging, fiber fly laser printing is commonly found on metal can lids, plastic packaging, and glass bottles, primarily serving product traceability and anti-counterfeiting functions.

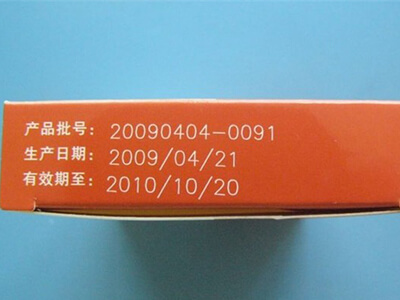

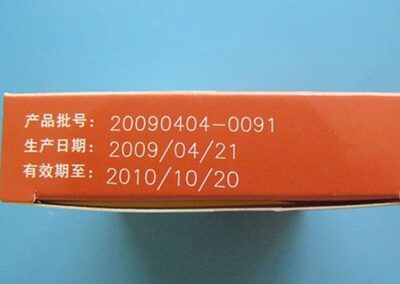

2.Pharmaceutical industry

A fiber laser marking machine is ideal for marking batch numbers, expiration dates, and other information on medicine bottles, packaging boxes, and sterile packaging. This non-contact process eliminates the use of ink and other consumables, eliminating the risk of chemical contamination.

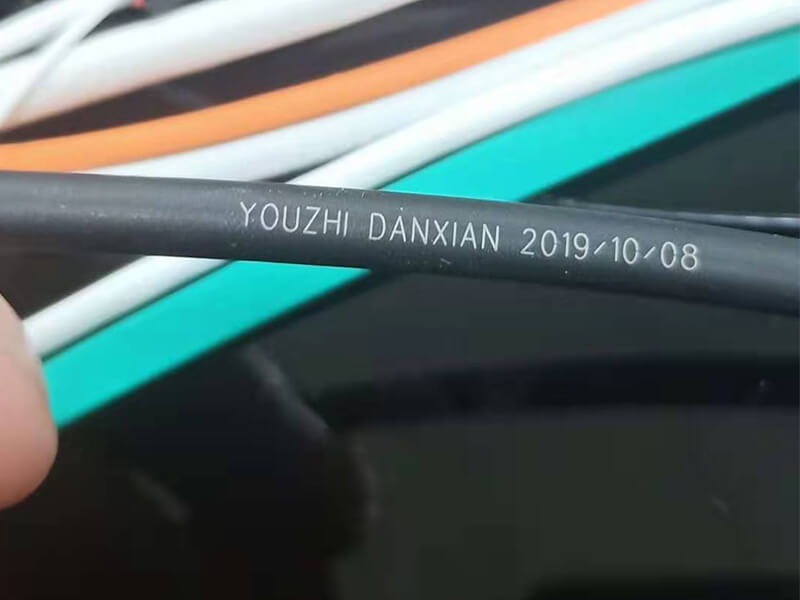

3.Electrical industry

In the electrical industry, fiber laser marking machines provide durable and precise identification on metal parts, plastic components (such as ABS, HDPE), and wire jackets.

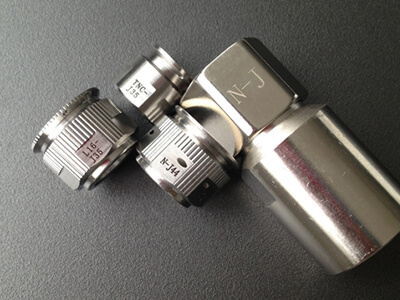

4.Automotive manufacturing

The automotive industry has extremely high requirements for traceability. Fiber laser printer can engrave deep and beautiful marks on the surface of hard metal and plastic parts.

Engineered for Precision, Built for 24/7 Performance

TINHO developed the latest laser technology in the world, and designed the THU series UV fly laser printer, which is one of the latest applications on plastic based on well marketing experience, designed the printer with well compact & integration to suit fast & long time printing on plastic pipe, cable & plastic, meet 24hours continuous working. Smart & simple operation to meet different line speeds and materials.
