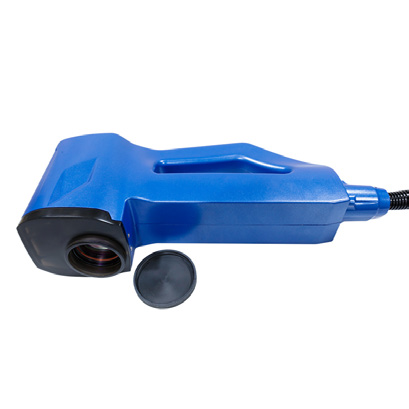

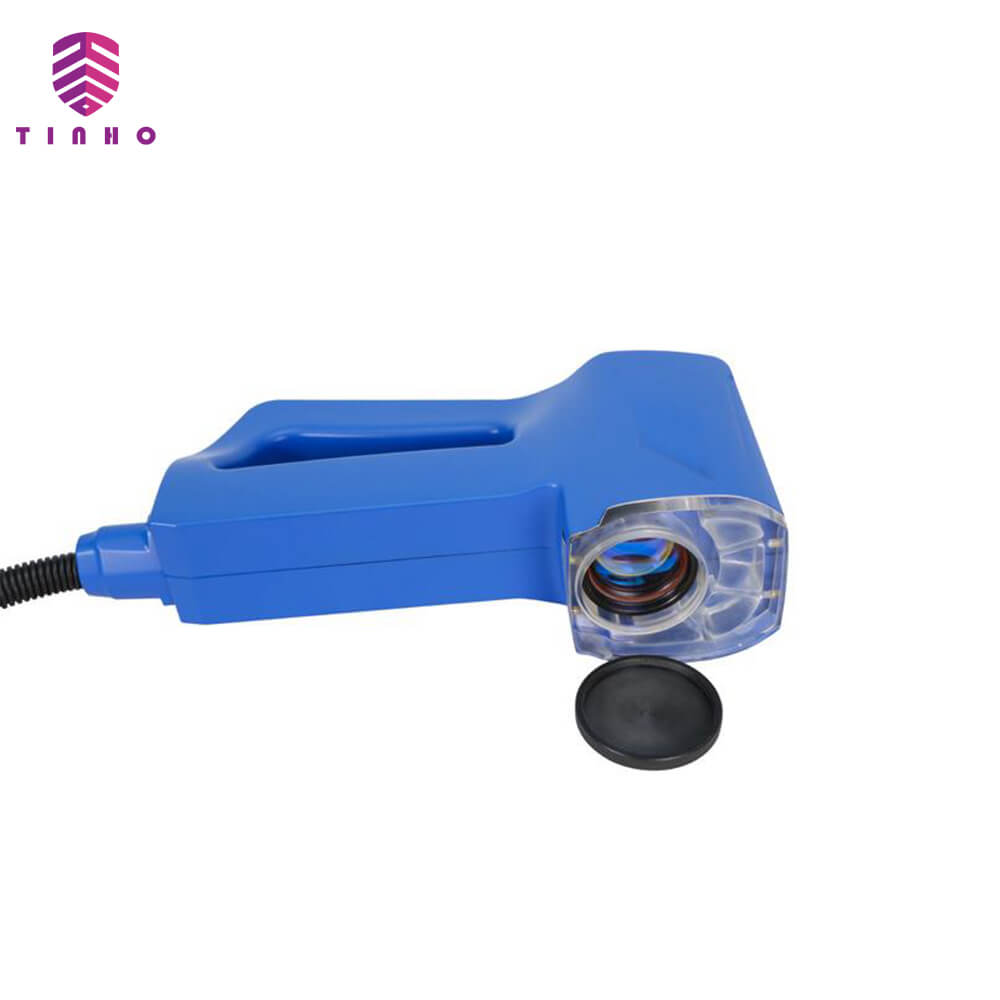

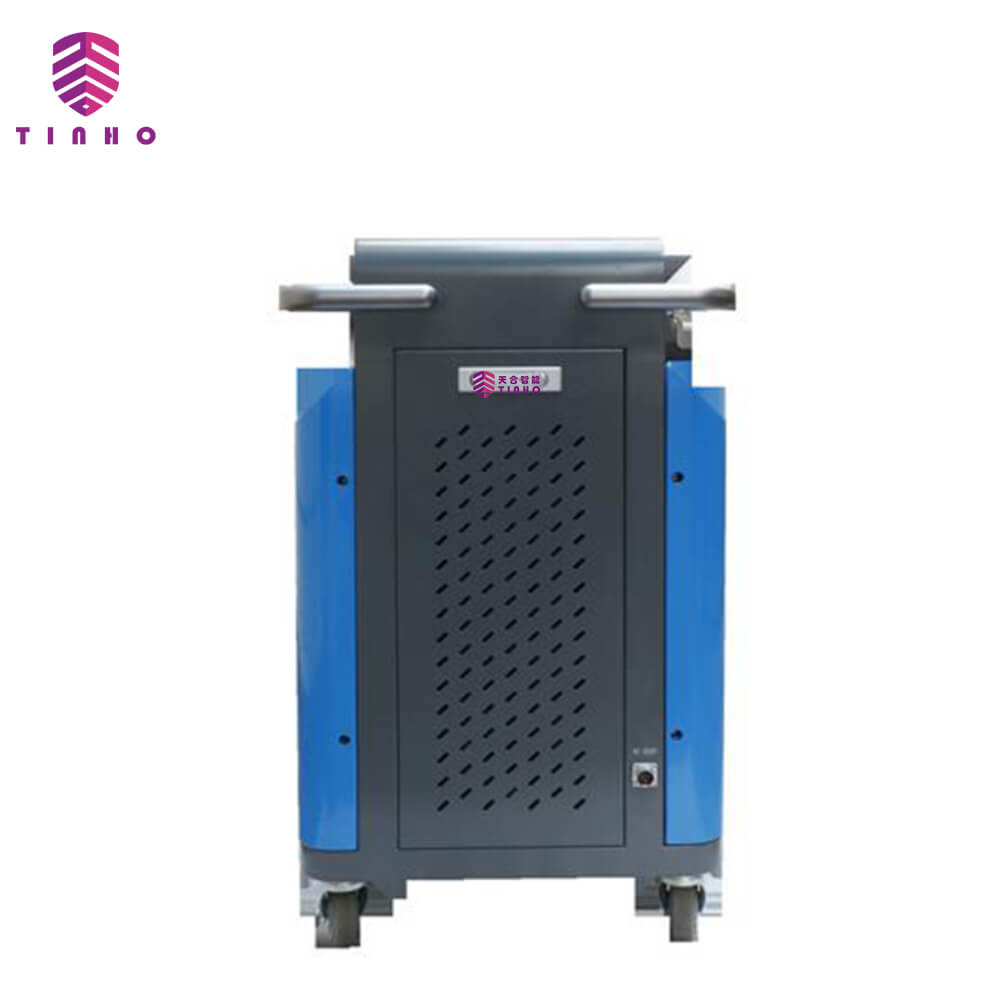

TH500 Portable Laser Cleaning Machine

  • Welding is using a laser beam focused by a high-power coherent monochromatic photon stream. The advantage is that it does not need to be carried out in a vacuum
  • Accurate energy control can be carried out, so the welding of precision devices can be realized.
  • The characteristics of laser welding are fast speed, large depth, small deformation, and small heat-affected zone.
  • Smooth and clean weld with or without simple process after welding.
  • The microstructure can be refined after welding, Weld strength is at least equal to or exceeds base metal strength.
  • The welding seam is narrow, the welding seam cooling speed is fast, the weld metal properties change little, and the welding seam strength is high. Compared with traditional welding, it is easier to use, no need professional welding experience is required. At present, laser welding is replacing traditional welding processes such as argon arc welding and cold welding.
  • Tiny laser spot can be precisely positioned and easily automated.
  • Suitable dissimilar metal welding.
  • Excellent for spot welding, butt welding, overlap sealing welding.

Item

 TH Handheld Laser Welding Machine

Model

           TH1500

Power

1500W(optional)

Mode

Continuous

Power Scope (%)

10-100

Wavelength

1080

Welding Thickness: Carbon Steel(235)

0.5-3.8mm

Welding Thickness: Stainless Steel(304)

0.5-3.8mm

Welding Thickness: Galvanized Steel

0.5-3.5mm

Output Power Stability

<3%

MOD Freq

50

Red Light Power

0.5-1

Beam quality(㎡)

<1.2

Divergence Angle

<0.1

Optical fiber core diameter(u)

100

Fiber cable(m)

15m

Max power consumption

5600W

Weight(Kg)

<260

Cooling Way

Water Cooling

Power operating cost(8h/d)

40kwh
