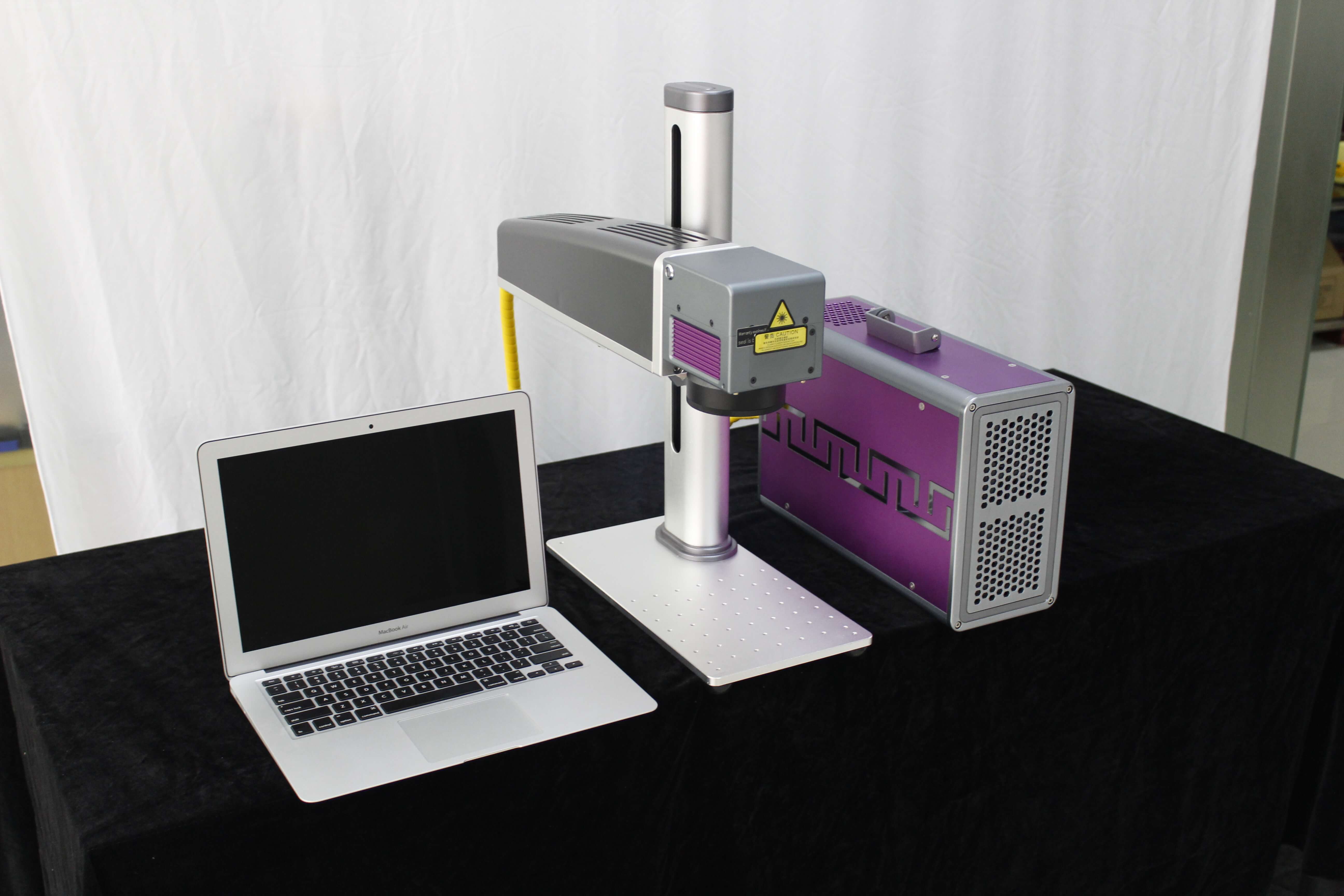

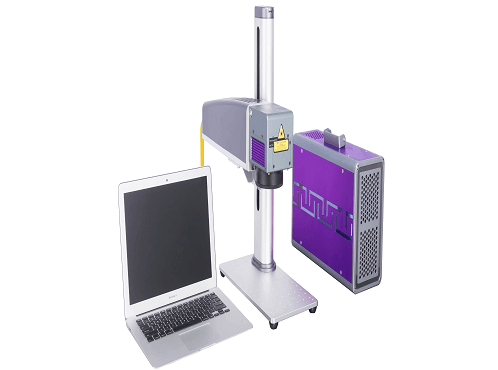

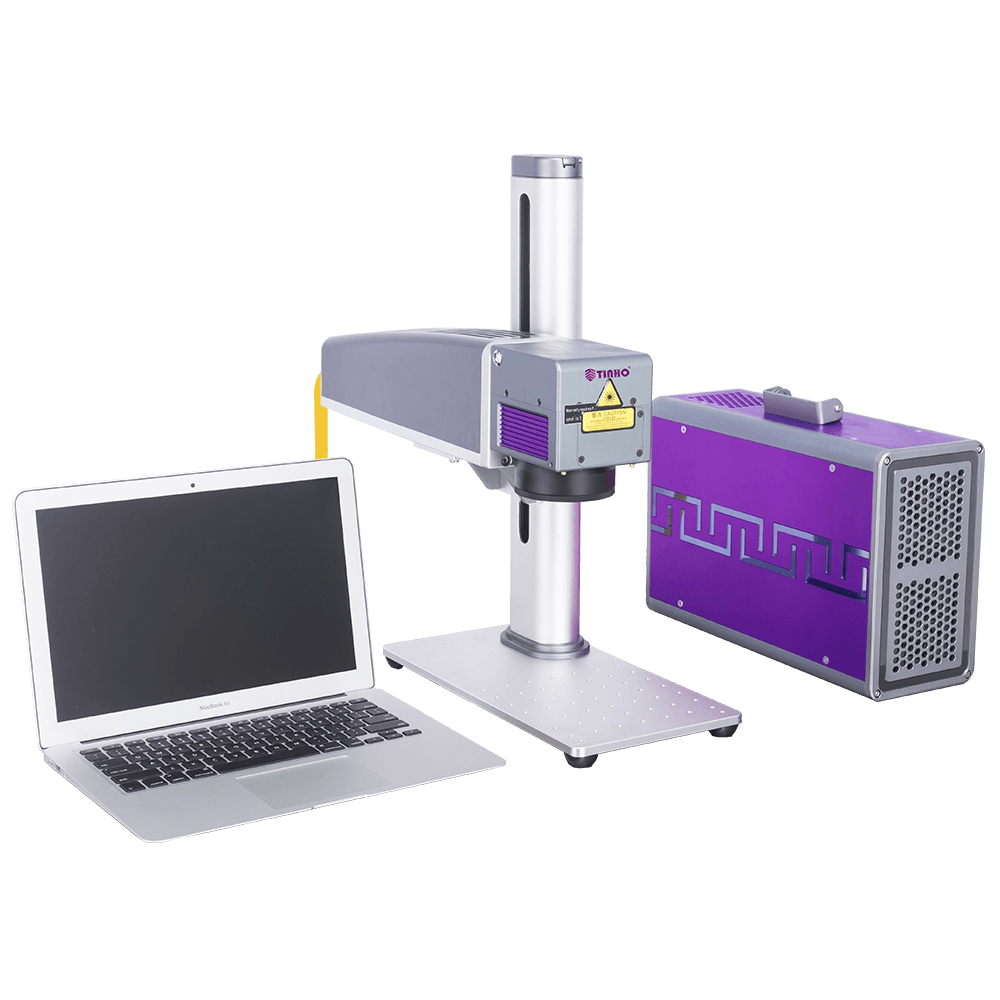

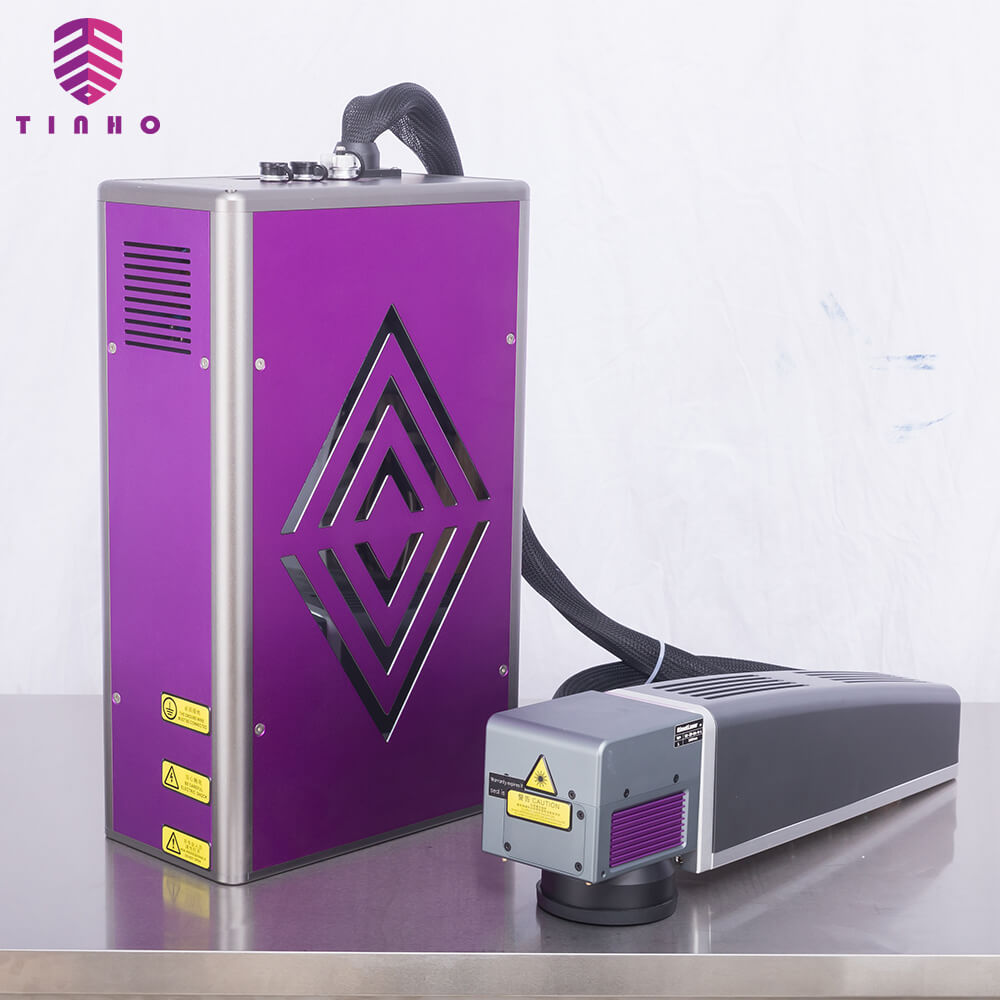

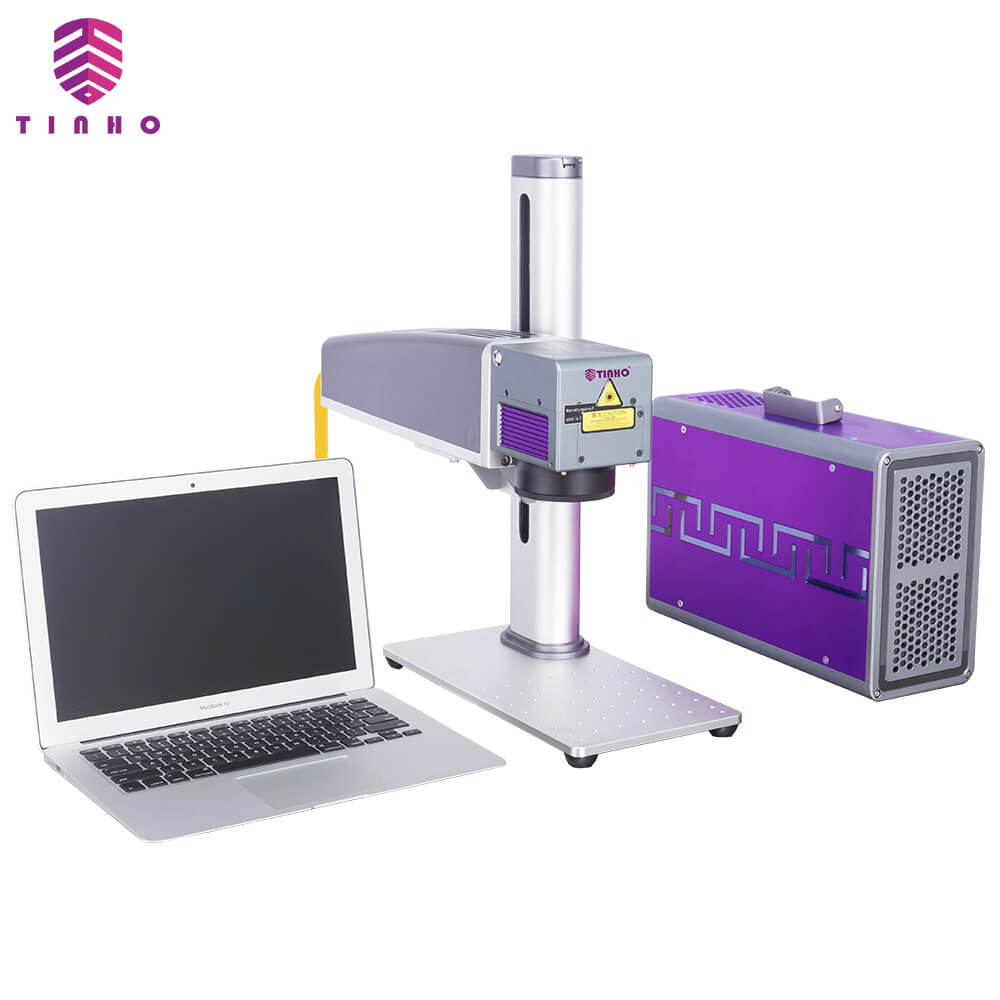

THF30 Fiber Portable Laser

TINHO developed latest laser technology in the world, and designed THF series Portable laser printer is one latest application on plastic based on well marketing experience, designed the printer with well compact & integration to suit for fast & long time printing on plastic pipe, cable & plastic, meet 24hours continuous working. Smart & simple operation to meet different line speed and materials.

1.High speed with galvanometer.

2.Small volume, light weight.

3.Low power, consumption power is less than 500w.

4.Completely air cooling, low energy.

5.No influence of the severe environment and temperature change. If no power, battery and car cigarette lighter can be used for working.

6.Greatly reduce the depreciation cost, satisfying customers” stable large quantities producing.

Laser Power

10W/20W/30W/50W

Laser Wavelength

1064nm

Q-frequency

20KHz~100KHz

Divergence

0.3mard

Marking Range

100*100mm/200*200mm/300*300mm

Minimum Line Width

0.02mm

Minimum Character

0.15mm

Marking Depth

0 ~0.5mm

Engraving Line Speed

≤9000mm/s

Repeatability Accuracy

±0.001mm

Beam Quality

M2:1.2~1.8

Marking Format

Graphics, Text, Bar Codes, Two-dimensional Code,
Automatically

Marking the Date, Batch number, Serial number, Frequency,
etc.

Graphic Format Supported

bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc.

Working Voltage

100V-240V 50-60Hz/4A

Unit Power

<0.5kw

Use of the Environment

Clean and Dust Free or Dust less

Working Condition: Humidity

5%-75%, Free of Condensed Water

Laser Module Life

>100000 hours

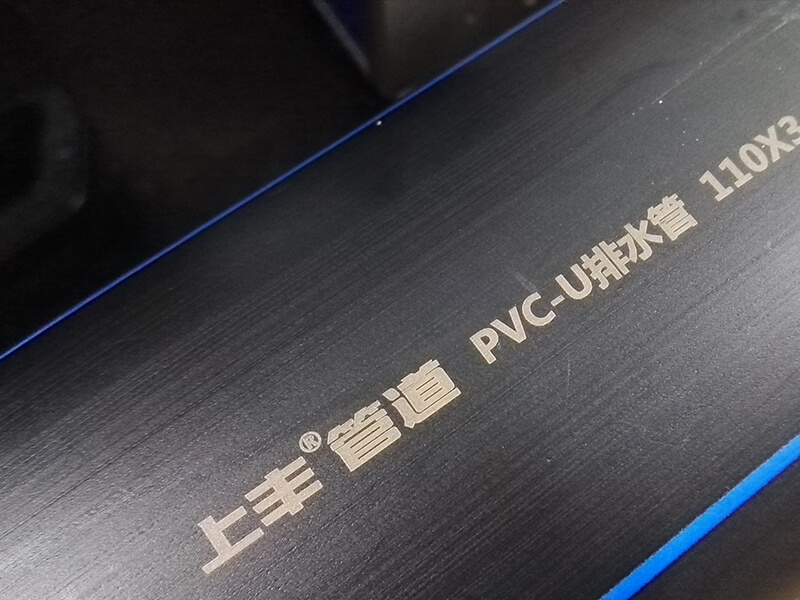

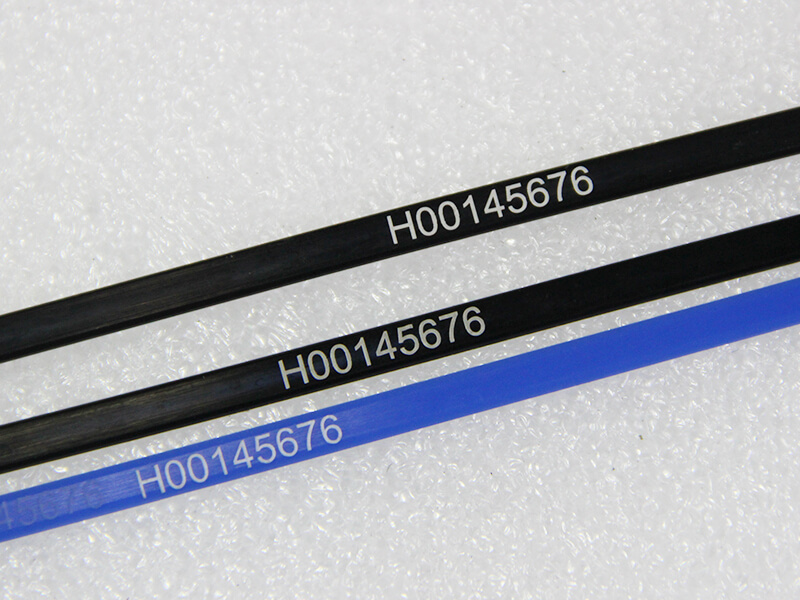

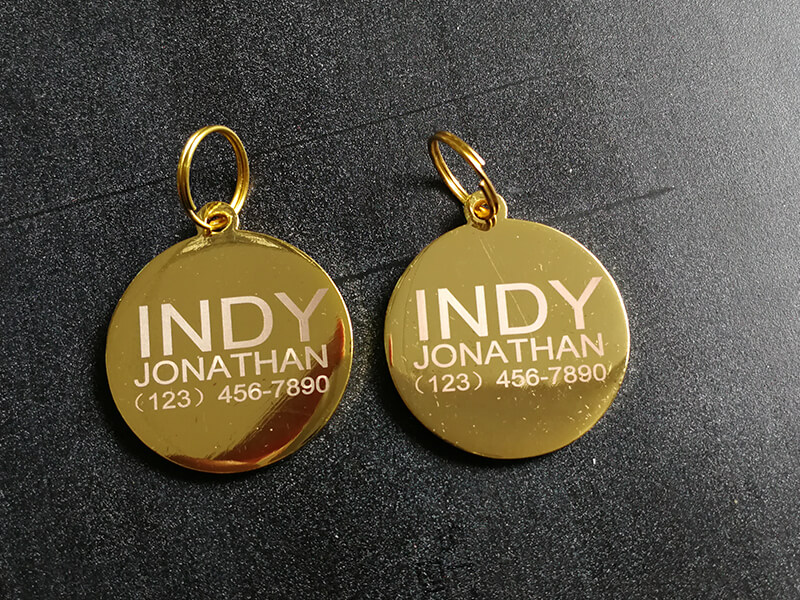

This type laser marker suitable for Gold, Silver, Diamond, Sanitary Equipment, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipment, Glasses and Clock, Auto Parts, Plastic & Paper Materials, The Electron, Hardware which with high request for depth, smooth, accuracy such as horologe, mould, bitmap marking etc.
