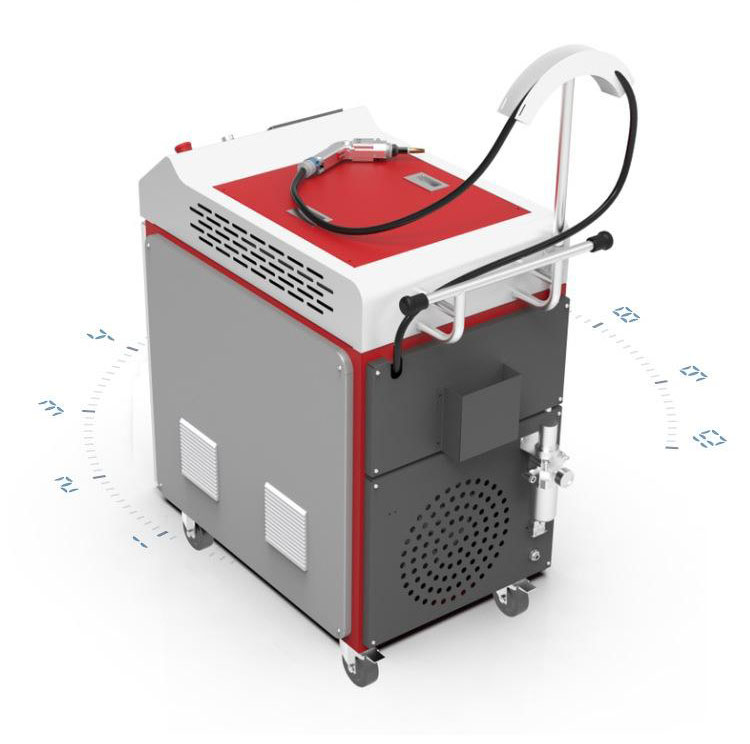

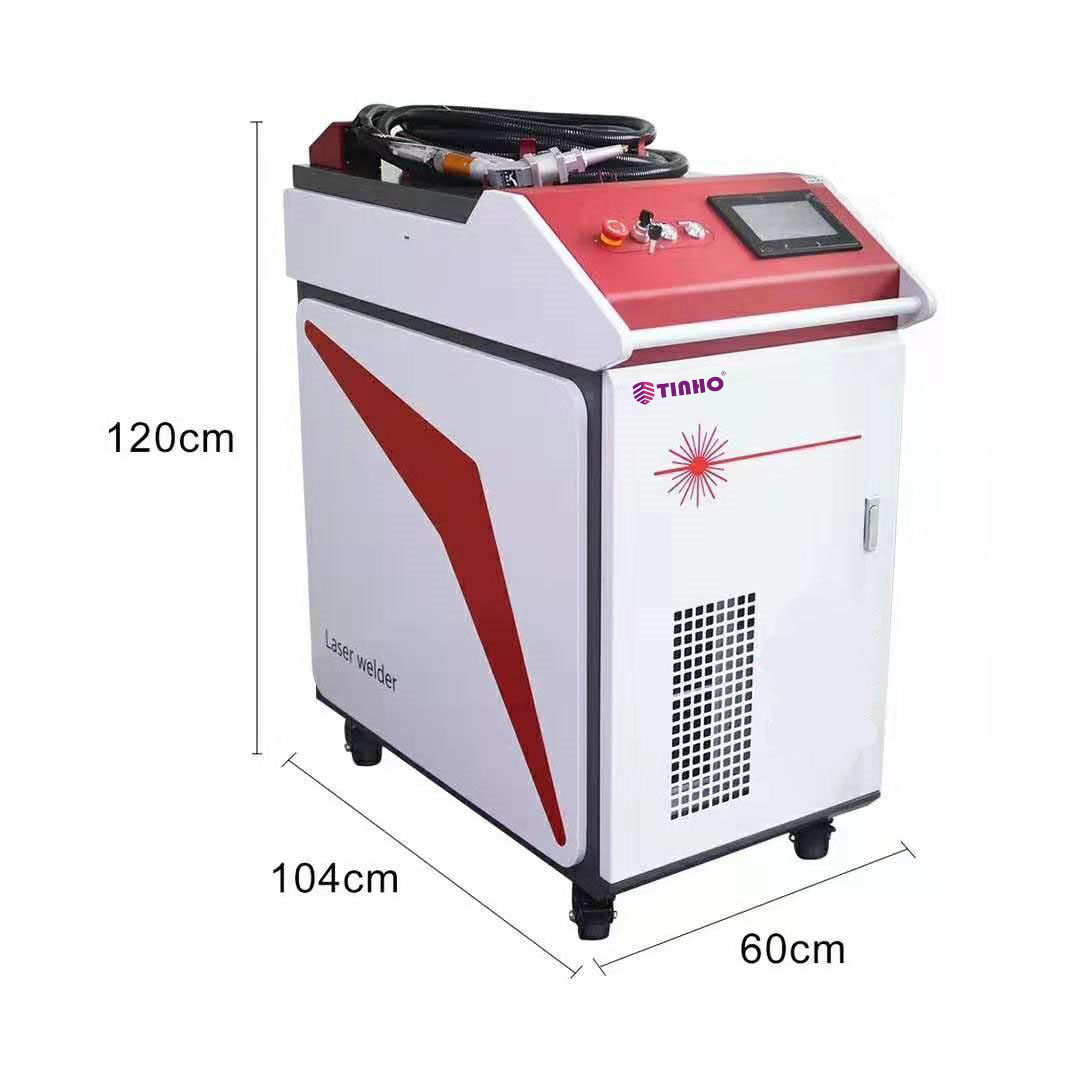

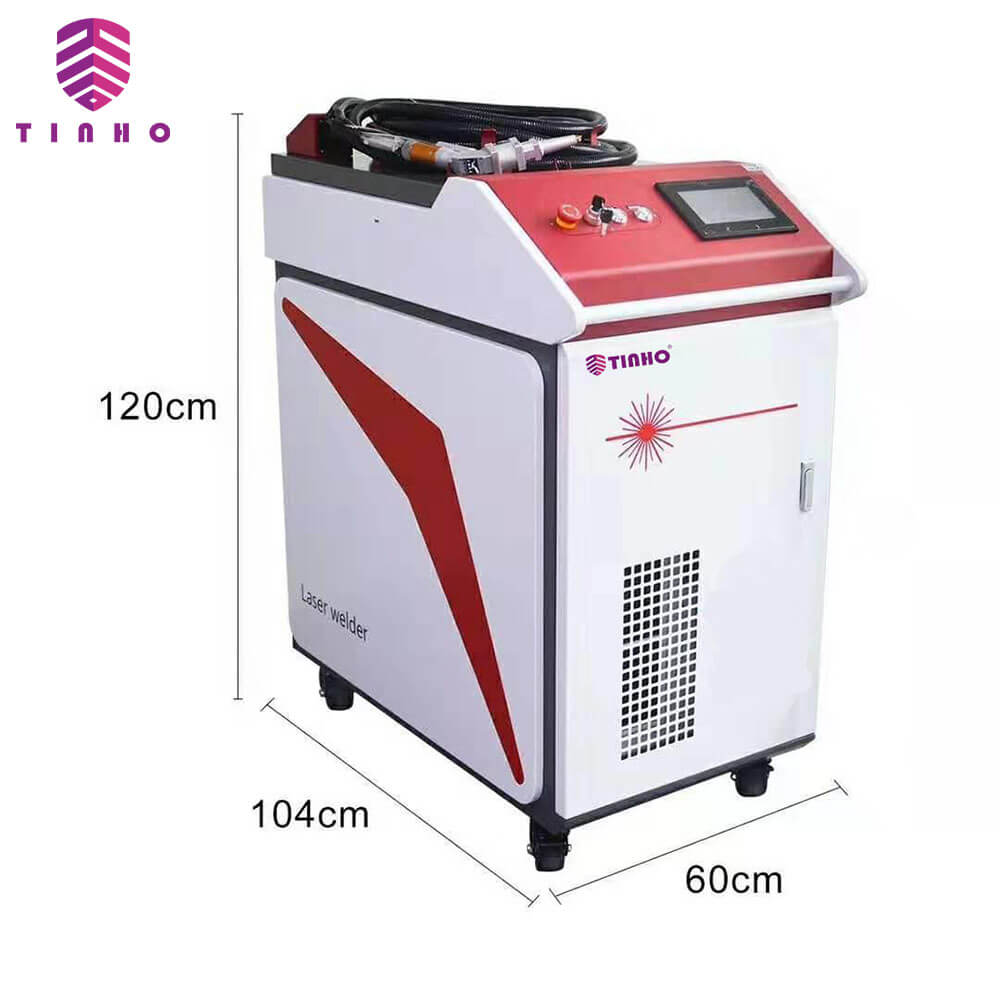

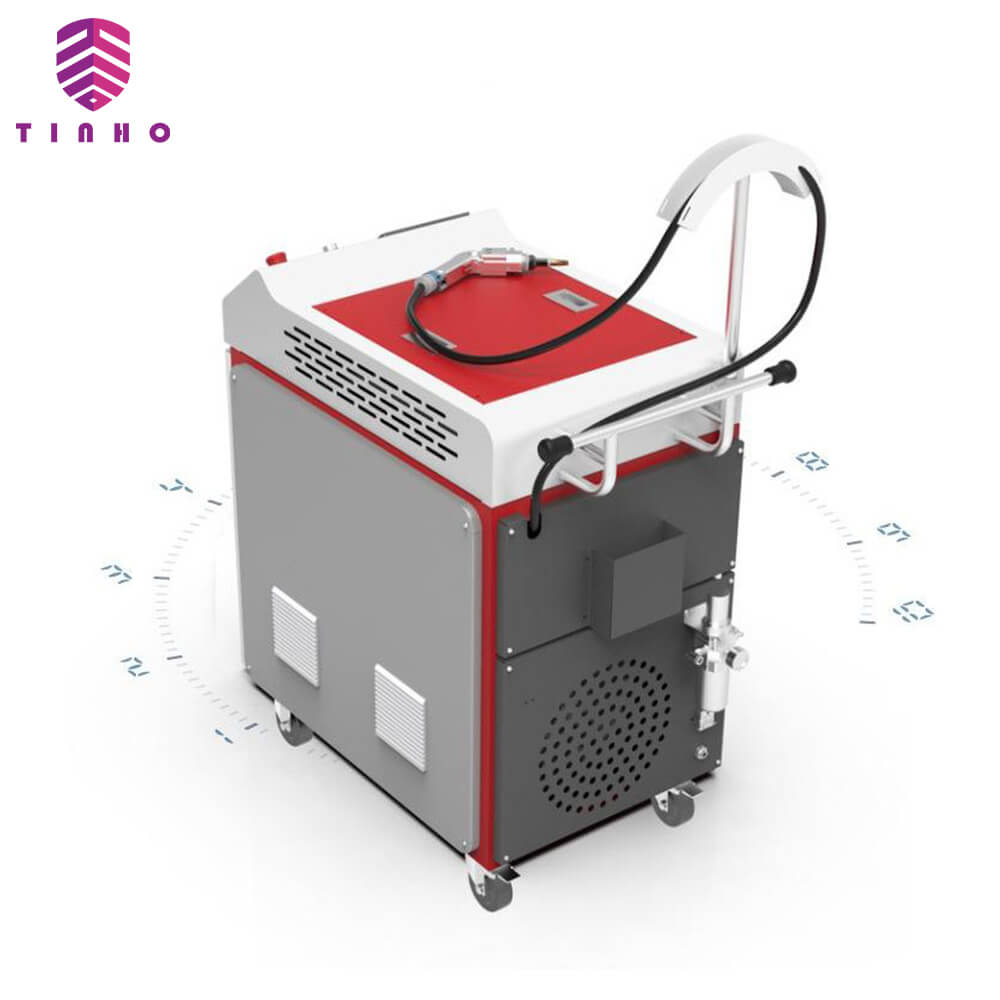

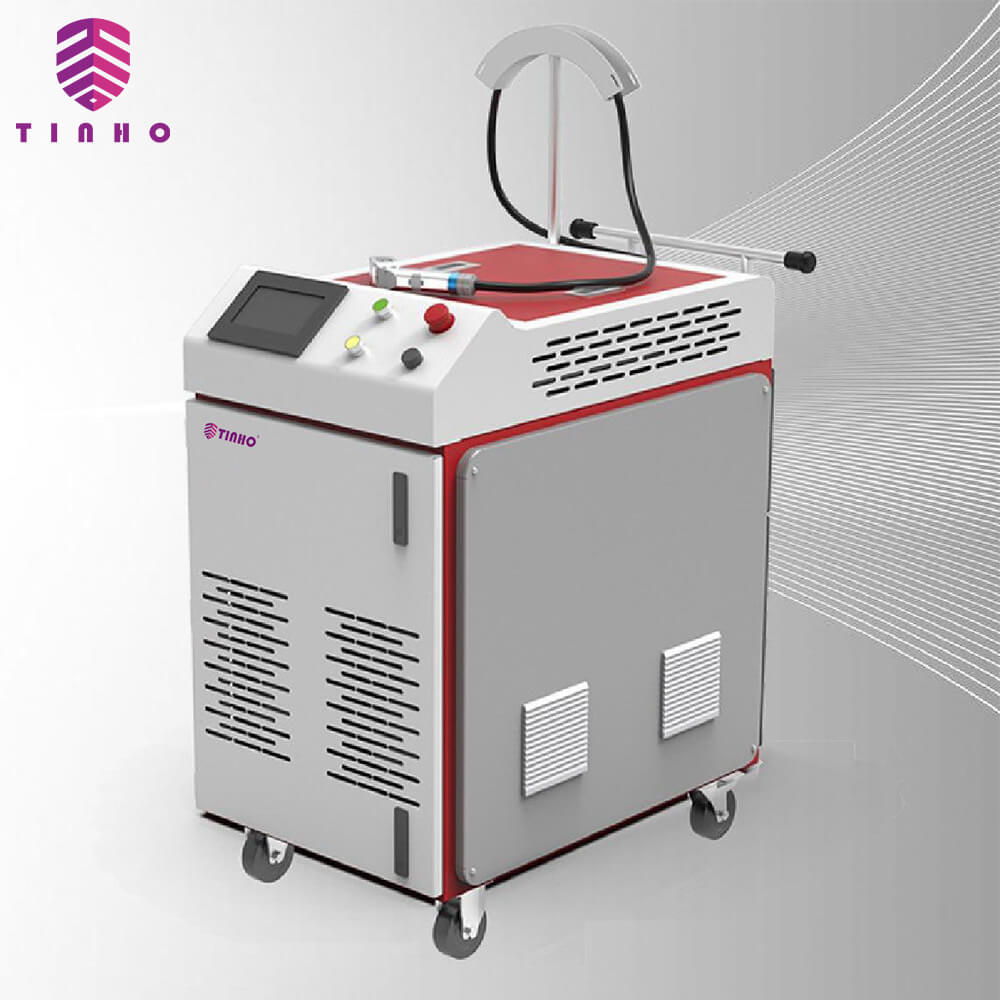

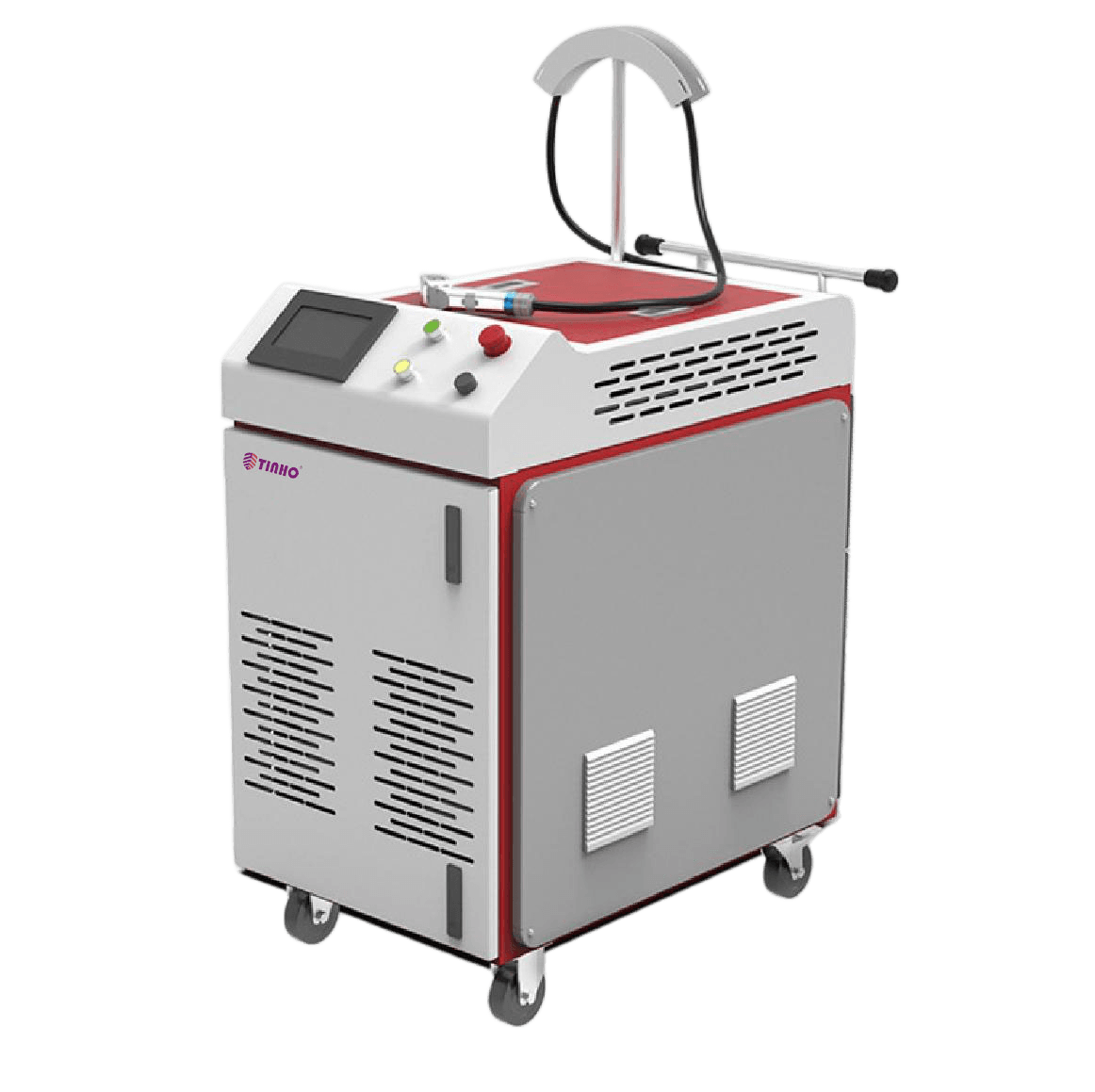

TH1500 Handheld Laser Welding Machine
Faster, Smarter, and More Flexible Laser Welding Solutions
The TH1500 handheld laser welding machine is an advanced welding solution that combines high efficiency, precision and ease of use. It operates with a laser beam formed by focusing a high-power coherent monochromatic photon stream. Its core advantage lies in the fact that it can be operated without being in a vacuum environment, significantly enhancing production flexibility.
Highlights of TH1500 Laser Welding Machine
Superior Weld Strength
The micro-structure is refined during the process, ensuring the weld strength equals or exceeds the base metal strength
Precision Positioning
The tiny laser spot allows for precise positioning and can be easily automated
High-Quality Seams
It creates narrow welding seams with fast cooling speeds, resulting in high strength and minimal changes to metal properties
Dissimilar Metal Welding
The machine is highly suitable for welding dissimilar metals, providing greater material flexibility
User-Friendly
Compared to traditional methods like argon arc welding, it is easier to use and requires no professional welding experience
Versatile Applications
It is an excellent solution for various welding styles, including spot welding, butt welding, and overlap sealing welding
Product Parameters
|
Item |
TH Handheld Laser Welding Machine |
|
Model |
TH1500 |
|
Power |
1500W(optional) |
|
Mode |
Continuous |
|
Power Scope (%) |
10-100 |
|
Wavelength |
1080 |
|
Welding Thickness: Carbon Steel(235) |
0.5-3.8mm |
|
Welding Thickness: Stainless Steel(304) |
0.5-3.8mm |
|
Welding Thickness: Galvanized Steel |
0.5-3.5mm |
|
Output Power Stability |
<3% |
|
MOD Freq |
50 |
|
Red Light Power |
0.5-1 |
|
Beam quality(㎡) |
<1.2 |
|
Divergence Angle |
<0.1 |
|
Optical fiber core diameter(u) |
100 |
|
Fiber cable(m) |
15m |
|
Max power consumption |
5600W |
|
Weight(Kg) |
<260 |
|
Cooling Way |
Water Cooling |
|
Power operating cost(8h/d) |
40kwh |
Features
Vacuum-Free Operation
Welding is performed using a high-power coherent monochromatic photon stream focused laser beam, which does not need to be carried out in a vacuum
Precise Energy Control
The system allows for accurate energy control, making the welding of precision devices possible
High Efficiency and Low Distortion
The process is characterized by fast speed, large depth, small deformation, and a small heat-affected zone
Clean Post-Weld Finish
It produces smooth and clean welds that require little to no processing after the welding is complete

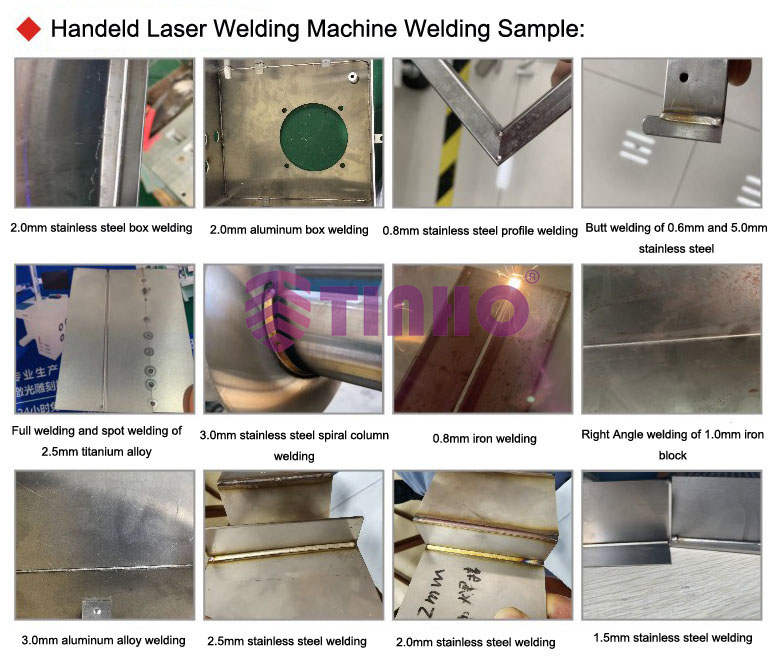

Applications
