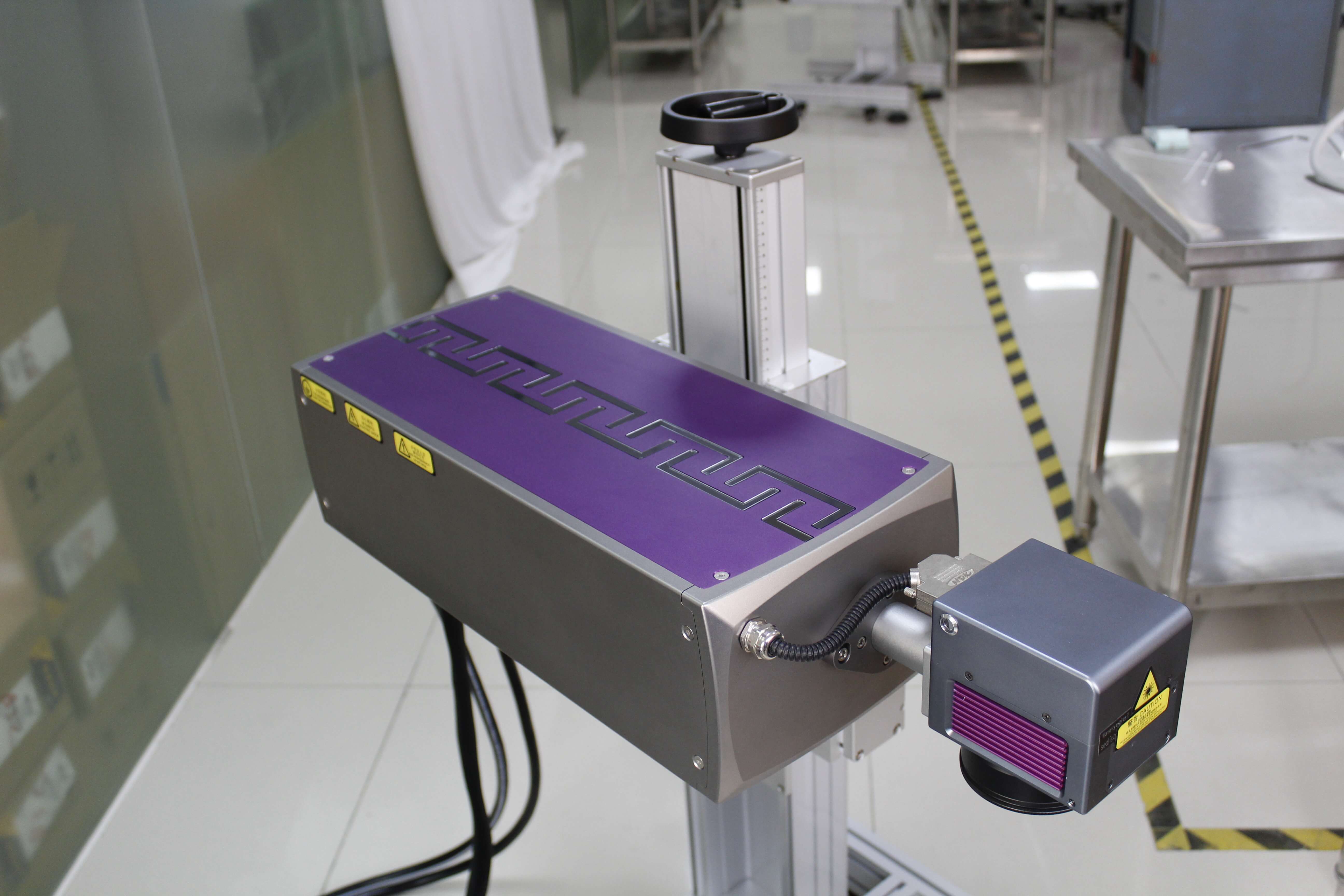

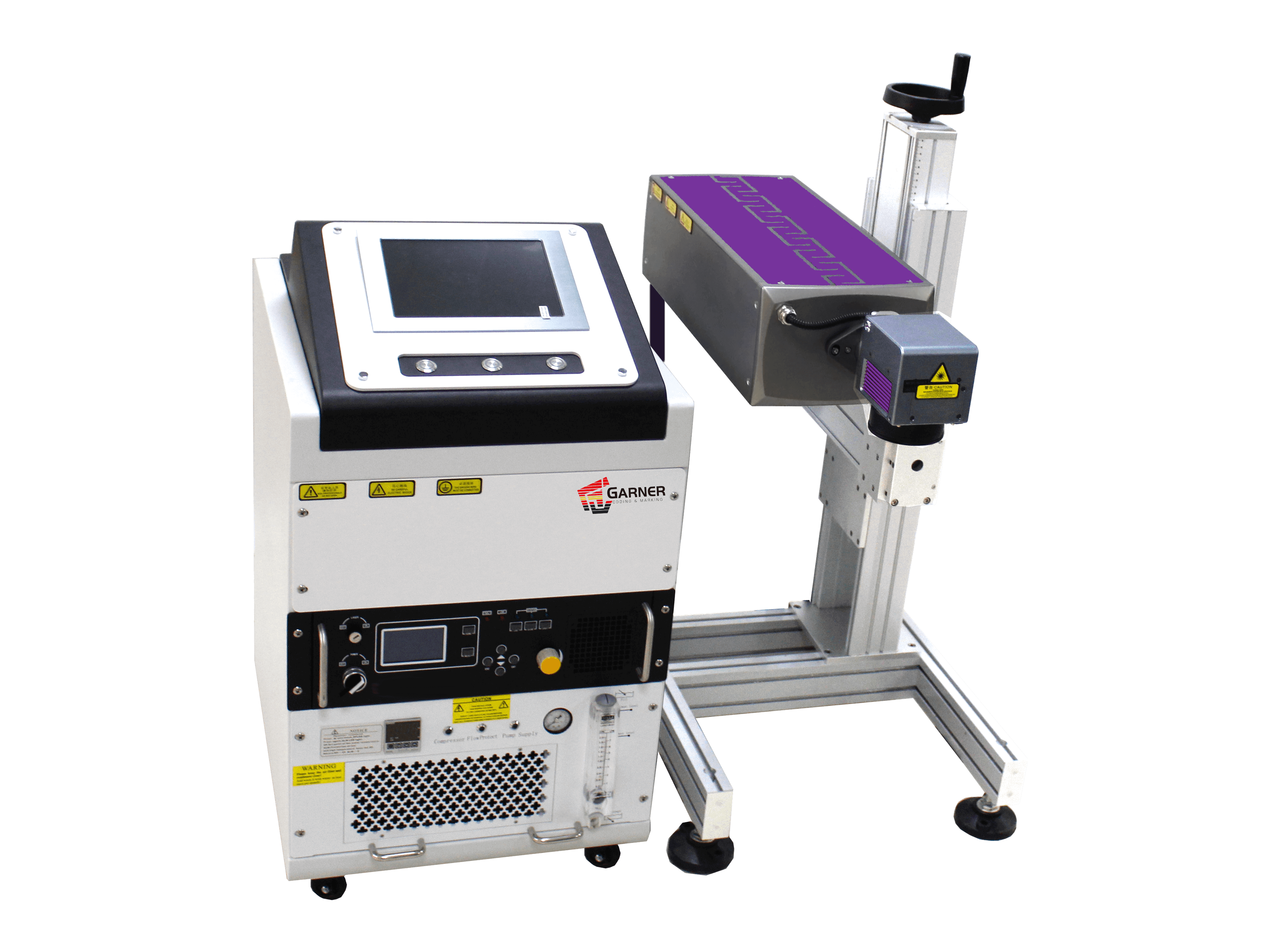

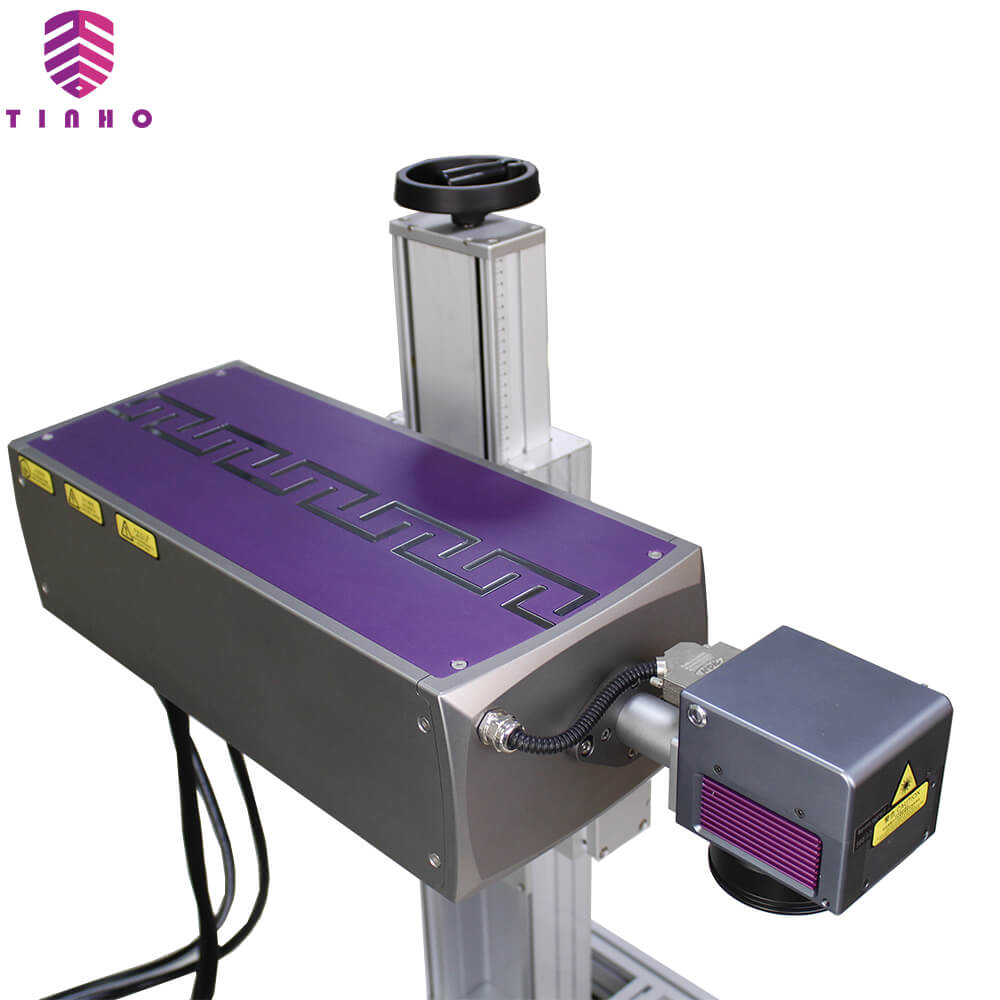

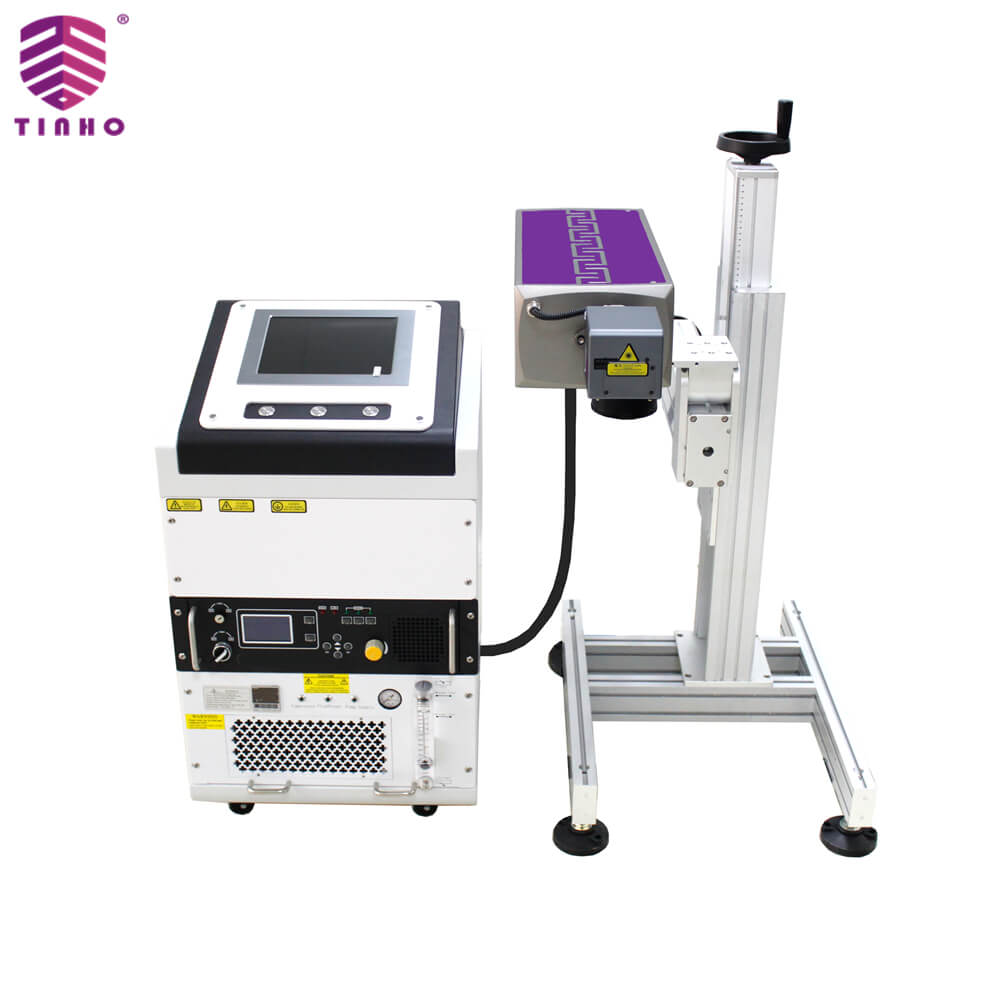

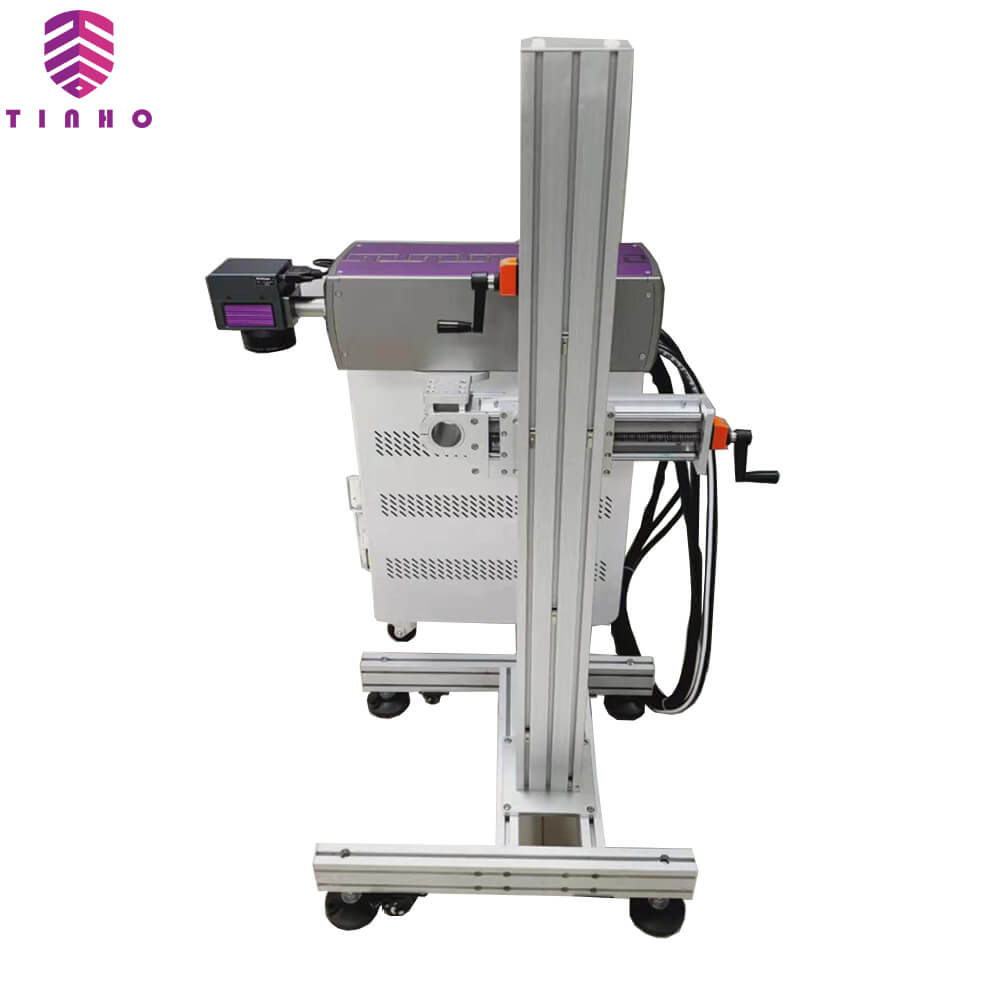

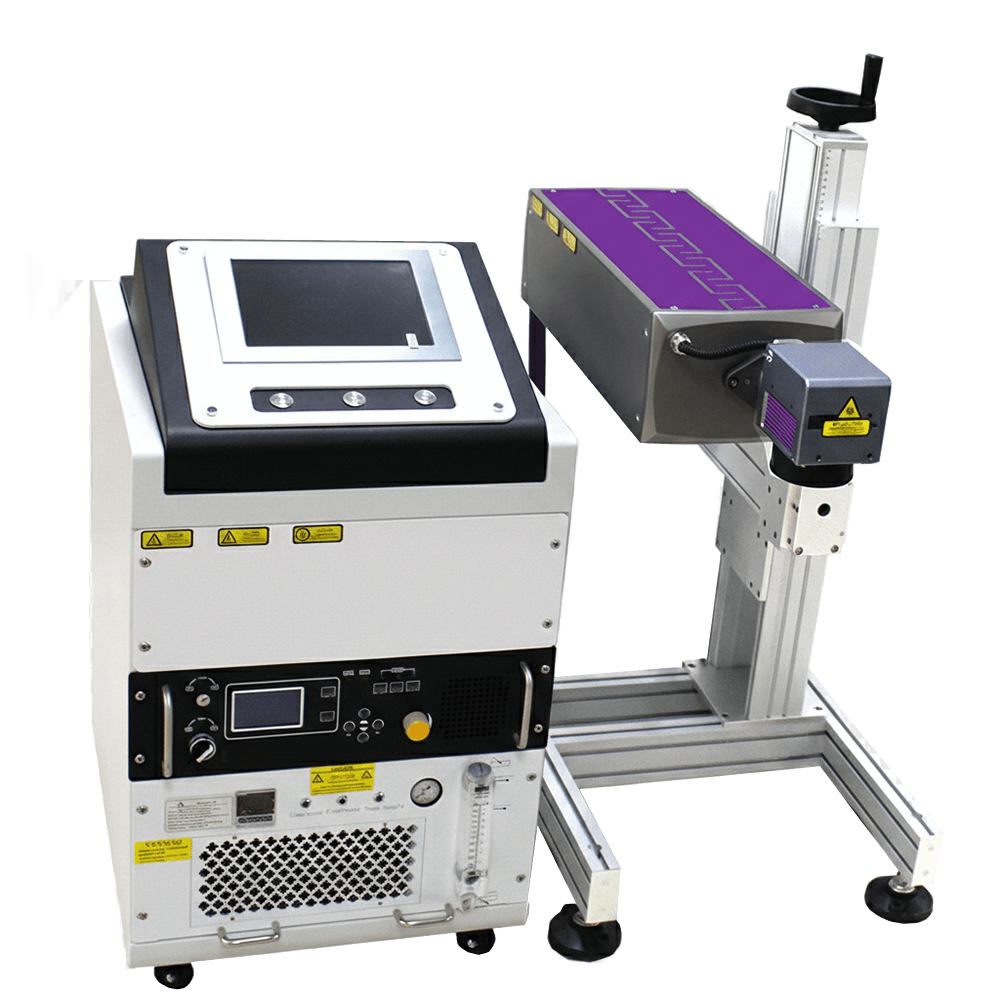

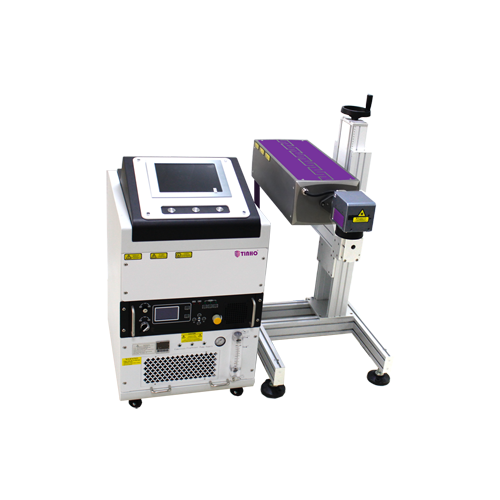

THU05F UV Fly Laser Marking Machine

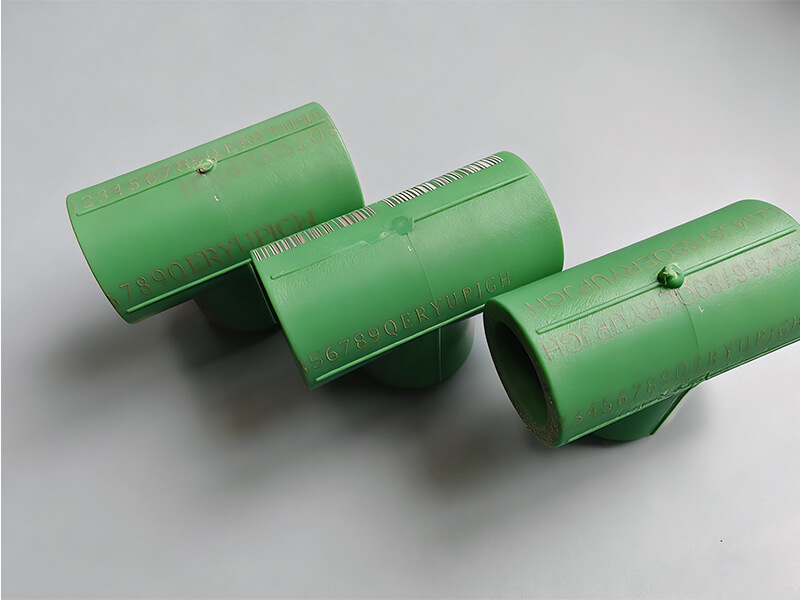

TINHO developed latest laser technology in the world, and designed THU series UV fly laser printer is one latest application on plastic based on well marketing experience, designed the printer with well compact & integration to suit for fast & long time printing on plastic pipe, cable & plastic, meet 24hours continuous working. Smart & simple operation to meet different line speed and materials.

TINHO developed latest laser technology in the world, and designed THU series UV fly laser printer is one latest application on plastic based on well marketing experience, designed the printer with well compact & integration to suit for fast & long time printing on plastic pipe, cable & plastic, meet 24hours continuous working. Smart & simple operation to meet different line speed and materials.



Machine Body

Complete Aluminum Structure



Laser Type

                         UV Laser



Output Power

3/5/10/15/20W



Laser Wave

355um

Laser machine features

Scanning system

High precision double scanning system



Marking Speed

9000mm/s



Controller

10” Color touch screen



Operation System

Linux



Cooling System

Water Cooling









focusing lens

Focus distance 200mm(Optional)



Marking Line type

Dot-matrix, Vector font can be printing



Min Line size

0.01mm

Laser printing parameters

Repeated positioning accuracy

0.003mm



Marking Area

110mm×110mm(Optional)



Positioning

Red light positioning and automatic focus



Line Printing

Multi-line within marking size





Font

English, logo, number, date, time, barcode etc…

Supported types

File format

PLT/CNF



Barcode

CODE39、CODE128、CODE126、QR、



Power Supply

110-240V

Machine Parameters

power consumption

1000W



N.W

85KG

Suggest working environment

humidity≤80%; The condensation; No vibration



15-30
