THC30F Fly Laser Printer

PRODUCT

Overview

As the name implies, CO2 fly laser printers are used in different industries and have various applications. They are specially designed for fast and reliable marking on wood, fabric, greeting cards, plastic, etc.

– Good spot quality

– High laser power

– Easy to maintain

– MTBF:20000 hours

– Suitable for tough environments

Send Email to Us

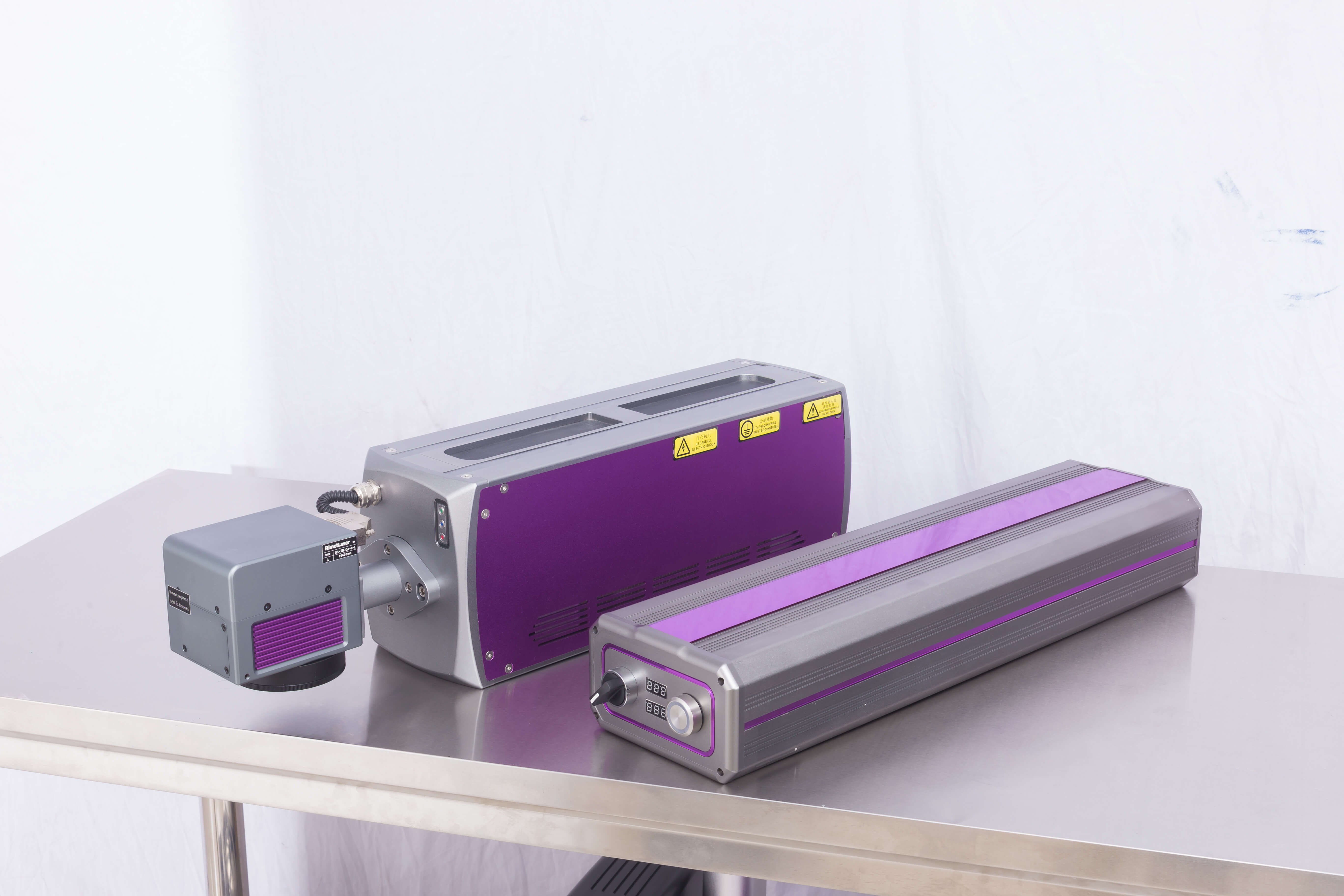

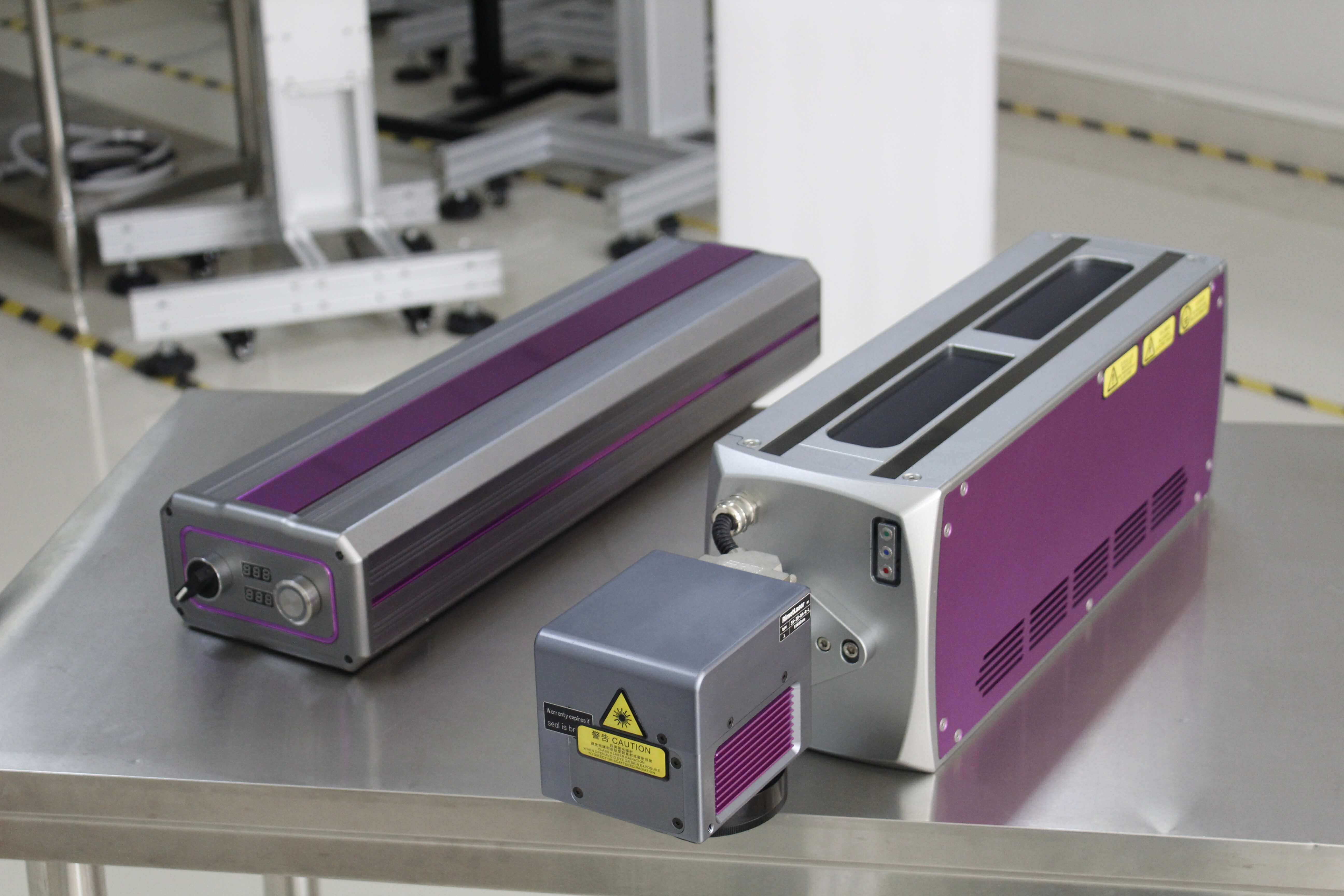

Introduction of THC30F CO2 Fly laser printer

The THC30F CO2 Fly laser printer uses carbon dioxide gas as the medium and a laser beam to mark the surface of the workpiece. This method produces marks that are permanent, contactless, and highly accurate.

The principle of CO2 fly laser marking machine

THC30F CO2 fly laser printer is a type of gas laser machine, where carbon dioxide is used to charge the discharge tube, which in this case is a medium, for generating the laser light. A computer-controlled galvanometer is used to change the path of the laser beam to achieve automatic and precise marking.

Why choose a flying CO2 laser marking machine?

1.High efficiency

In industrial setups, the marking process is completely automated, thus making these CO2 laser marking machines well-suited for continuous or prolonged usage. In fact, some of the best ones can even function continuously for 24 hours or more.

2.High performance

These laser machines are particularly suited for industrial setups where they need high-speed engraving and marking. It offers a permanent marking solution and comes in a compact form, thus making it easy to operate in even the most demanding manufacturing setups.

3.Low-maintenance

These CO2 laser marking machines need no consumable materials and have very low power consumption, unlike some of the heavy machinery that you’d typically find in different industrial setups. This is low-maintenance equipment and is thus also great for small and medium enterprises.

4.Ease of usage

Our equipment comes with unique software – a self-designed, easy-to-use interface that makes it easier for people to operate the machine. Once the details have been fed into the system, the machine automatically encodes and prints every detail on the surface of the item.

5.Robust design

Being built for factory usage – close to production lines, they are generally well-built and can handle a fair bit of wear and tear. These have a modular design and are fairly easy to install. Once fixed, they are ready to go and can work without throwing tantrums for a long time.

Features of THC30F CO2 Fly Laser Printer

1.High speed on the fly marking

Capable of marking at speeds up to 5-7 m/s, the system ensures efficient, continuous marking on moving production lines.

2.Non-contact

The laser marking process does not contact the product surface, eliminating the risks of mechanical stress and physical damage.

3.Excellent marking quality

The CO2 laser marking printer provides extremely high precision, attractive, and long-lasting markings.

4.Easy integration

TINHO’s Co2 laser marking machine seamlessly integrates into ERP, WMS, and EMS systems, facilitating efficient automated production processes.

5.Outstanding performance

With a long-life laser source, THU30F CO2 fly laser printers offer an average MTBF of 20,000 hours.

MODEL ITEM		THC Fly Laser Series
	Frame Material	ALUM.
	Laser Device	High-speed PET bottle printing
	Power	≥10/30W/60W
	Laser Wavelength	10.64/10.2/9.3μm
PERFORMANCE	Galvanometer deflection	High Precision dual dimensional scanning system
	Marking speed	≤9000mm/s
	Master Control	Highly integrated board with 7 inch Color Touch screen
	Operating System	LINUX based with High Speed Pipe Marking Software
	Cooling	Air Cooling System
	Focus Distance	Focus 150mm
	Marking line type	Dot matrix, bold, vector all in one(both dot matrix and vector)
	Minimum line width	0.012mm
	Repeatability accurate positioning	0.003mm
Marking Specifications	Marking Area	Standard 110mm×110mm（Customized available）
	Marking height	Standard Character height 110mm
	Marking Length	Unlimited
	Positioning mode	Red light positioning and focusing
	Number of characters	Any line(multi-line) within marking range
	Typeface	Chinese , English, available to customized
Support type	Marking	Number, logo, image, letter, serials number, system date & time,etc…
	File format	CNF/PLT
	Bar code	CODE39、CODE128、CODE126、QR、Z-Code
	Power Supply	100-220V/50-60HZ
Others	Power Consumption	800W
	Net Weight	45kg
	Oversize	350mmX300mmX1200MM
Environmental Requirement		0℃－45℃; humidity≤95%; non-condensing; no shaking

Q:Do laser printers need to be refilled?

A:No, the biggest advantage of a laser printer is that they operate without ink or consumables, offering cost savings and permanent marking results.

Q:How do I choose an industrial laser printer?

A:Just let us know your detailed requirements, such as material, marking content, and main application. Our professional sales team will assess your production needs and recommend the most suitable model for you.

Q:Should I get an inkjet or laser printer?

A:Compared to an inkjet marking machine, a CO2 fly laser printer is a permanent marking solution, which is more widely used on workpieces such as plastic, glass, ceramic, and wood.

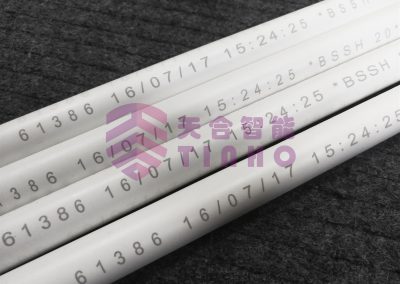

Applications of the CO2 fly laser printer

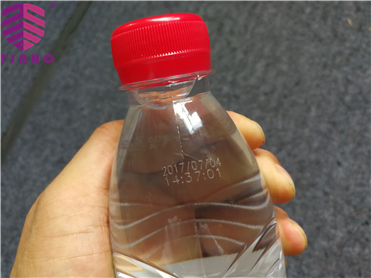

These co2 laser marking machines are specially designed for fast and reliable marking on wood, fabric, greeting cards, various electronic components, plastics, building ceramics, integrated circuit (IC), pharmaceutical packaging, and more. In fact, the flying CO2 laser marking machine is great for wood, leather, glass, acrylic, paper, PVC products, and other non-metal surfaces. Chiefly used in the food and beverage packaging industry, alcohol and dairy product packaging, tobacco, and pharmaceuticals, the machines are great for printing or marking expiry date, manufacturing date, batch number, and logo.
