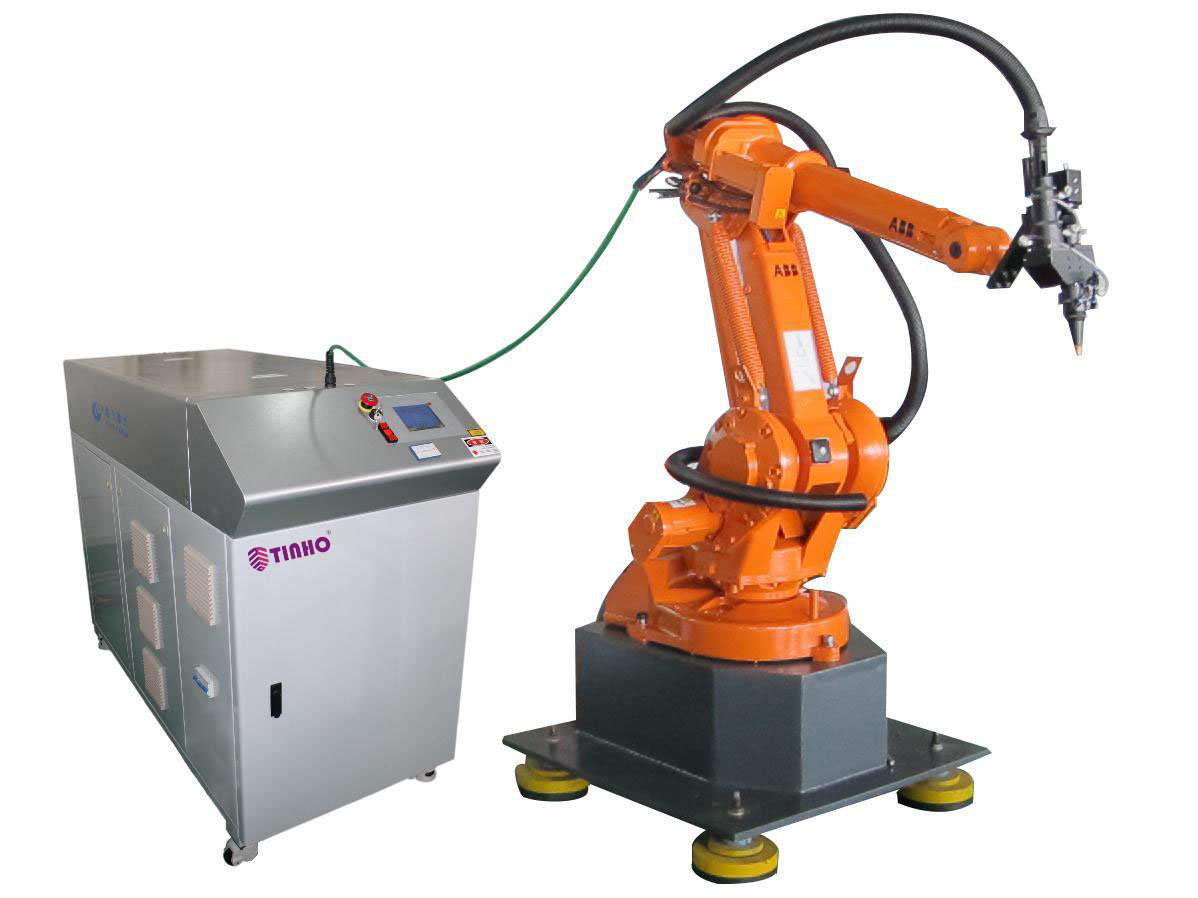

TH3000 Automatic Laser Welding Machine
3000W High-Power Laser Welding for Fast, Precise, and Reliable Industrial Welding
The TH3000 Automatic Laser Welding Machine delivers up to 3000W of continuous laser power for fast, deep-penetration welding with minimal heat distortion. Its high-quality beam, precise laser control, and water-cooled industrial design ensure consistent, high-strength welds across a wide range of metal materials and thicknesses. Designed for automation-ready production, it helps manufacturers improve welding efficiency, quality, and overall productivity.
Highlights of TH3000 Laser Welding Machine
High-Efficiency Deep-Penetration Welding
Delivers up to 3000W continuous laser power for fast welding speeds and deep penetration, helping improve production throughput.
Clean Weld Finish
Produces smooth, clean welds that require little or no post-weld grinding or finishing.
Minimal Heat Distortion
Highly concentrated heat input creates a narrow weld seam and small heat-affected zone, reducing workpiece deformation.
Precision and Automation Ready
The small laser spot enables accurate positioning and easy integration into automated production lines.
High-Strength, Reliable Welds
The welding process refines the microstructure, with weld strength equal to or exceeding that of the base material.
Versatile Welding Applications
Suitable for carbon steel, stainless steel, galvanized steel, and dissimilar metals; supports spot welding, butt welding, and lap sealing welding.
Product Parameters
|
Item |
TH Automatic Laser Welding Machine |
|
Model |
TH3000 |
|
Power |
3000W(optional) |
|
Mode |
Continuous |
|
Power Scope (%) |
10-100 |
|
Wavelength |
1080 |
|
Welding Thickness: Carbon Steel(235) |
0.5-5mm |
|
Welding Thickness: Stainless Steel(304) |
0.5-5mm |
|
Welding Thickness: Galvanized Steel |
0.5-5mm |
|
Output Power Stability |
<3% |
|
MOD Freq |
50 |
|
Red Light Power |
0.5-1 |
|
Beam quality(㎡) |
<1.2 |
|
Divergence Angle |
<0.1 |
|
Optical fiber core diameter(u) |
100 |
|
Fiber cable(m) |
15m |
|
Max power consumption |
5600W |
|
Weight(Kg) |
<260 |
|
Cooling Way |
Water Cooling |
|
Power operating cost(8h/d) |
40kwh |
Features
3000W Continuous Laser Output
Adjustable power range from 10% to 100% to accommodate different materials and welding processes.
0.5–5 mm Welding Capacity
Welds carbon steel, 304 stainless steel, and galvanized steel in thicknesses from 0.5 to 5 mm.
Stable, High-Quality Beam
Less than 3% output power instability and beam quality of M2<1.2M² < 1.2M2<1.2 support consistent precision welding.
Industrial Water-Cooled Design
Water cooling, a 15 m fiber cable, and a machine weight below 260 kg make it suitable for industrial applications.
Applications
